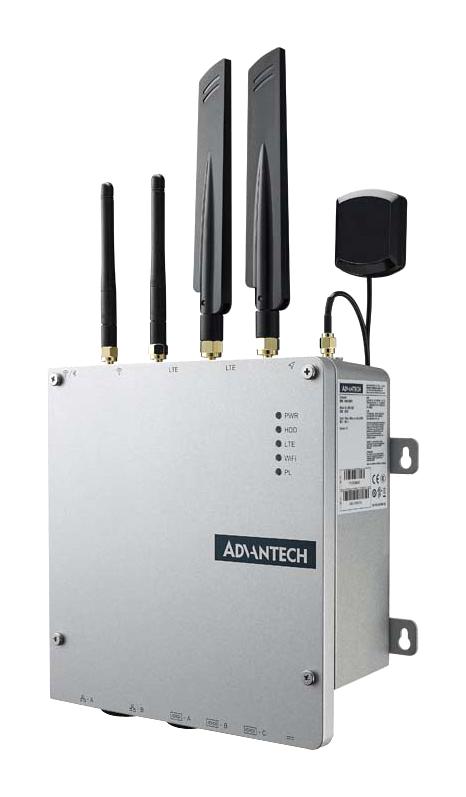

Advantech Automation UNO430E1A Industrial Gateway Controller
The UNO-430-E1A is a rugged industrial gateway designed for harsh outdoor environments, featuring IP69K/68 waterproof and dustproof protection. Equipped with an Intel Atom E3950 quad-core processor, 8GB DDR3L memory, and multiple communication interfaces including Gigabit Ethernet, RS-422/485, and RS-232, it provides reliable data acquisition and remote connectivity. Expandable via M.2 sockets for Wi-Fi, LTE, or GPS modules, it supports Windows 10 IoT Enterprise and Linux. Its waterproof enclosure with cable glands simplifies installation, making it ideal for industrial automation, remote monitoring, and outdoor applications.
Advantech Automation UNO430E1A Industrial Gateway Controller Specifications:
- Processor: Intel Atom E3950 quad-core, 2 GHz (up to 2 GHz)
- Memory: 8GB DDR3L, 1600MHz
- Dimensions: 200 x 200 x 68 mm
- Ingress Protection: IP69K, IP68
- Ethernet: 2x Gigabit (RJ45), IEEE 802.3u, 10/100/1000 Mbps
- Serial Ports: 2x RS-422/485, 1x RS-232, 50 ~ 115.2 kbps, terminal block with 2500V isolation
- Power: 10 ~ 36 V DC, typical 21W, max 27W
- Operating Temp: -40°C to 70°C (-40°F to 158°F)
- Storage Temp: -40°C to 85°C (-40°F to 185°F)
- Interfaces: M.2 sockets for Wi-Fi, LTE, GPS modules, USB 3.0, USB 2.0, DisplayPort
- Certification: CE, FCC, IEC/UL 62368-1, UL 60950-22
- Environment: 10-95% RH, non-condensing, shock and vibration resistant
- Construction: Waterproof enclosure with front door, cable glands for secure ingress protection
Buy the Advantech UNO-430-E1A – Reliable Industrial Gateway for Harsh Environments
Purchase the Advantech UNO-430-E1A online for your industrial automation needs. With IP69K/68 waterproof protection, powerful processing capacity, multiple communication interfaces, and expandable wireless options, this gateway is ideal for outdoor and harsh environments. Its rugged enclosure, easy installation features, and support for Windows IoT and Linux make it suitable for remote data acquisition, monitoring, and industrial control. Get reliable performance and expand your connectivity with this versatile, durable gateway controller today.
Order your Advantech UNO-430-E1A industrial gateway today and ensure reliable remote monitoring and data collection in outdoor or demanding industrial applications.
Frequently Asked Questions
Where can I buy Advantech Automation UNO430E1A?
You can click on the BUY or RFQ button to purchase UNO430E1A from an authorized Advantech Automation distributor.
How do I troubleshoot issues or seek technical support for part UNO430E1A?
You can download the UNO430E1A datasheet or visit the Advantech Automation website for support.
Who is the manufacturer of UNO430E1A?
Advantech Automation
