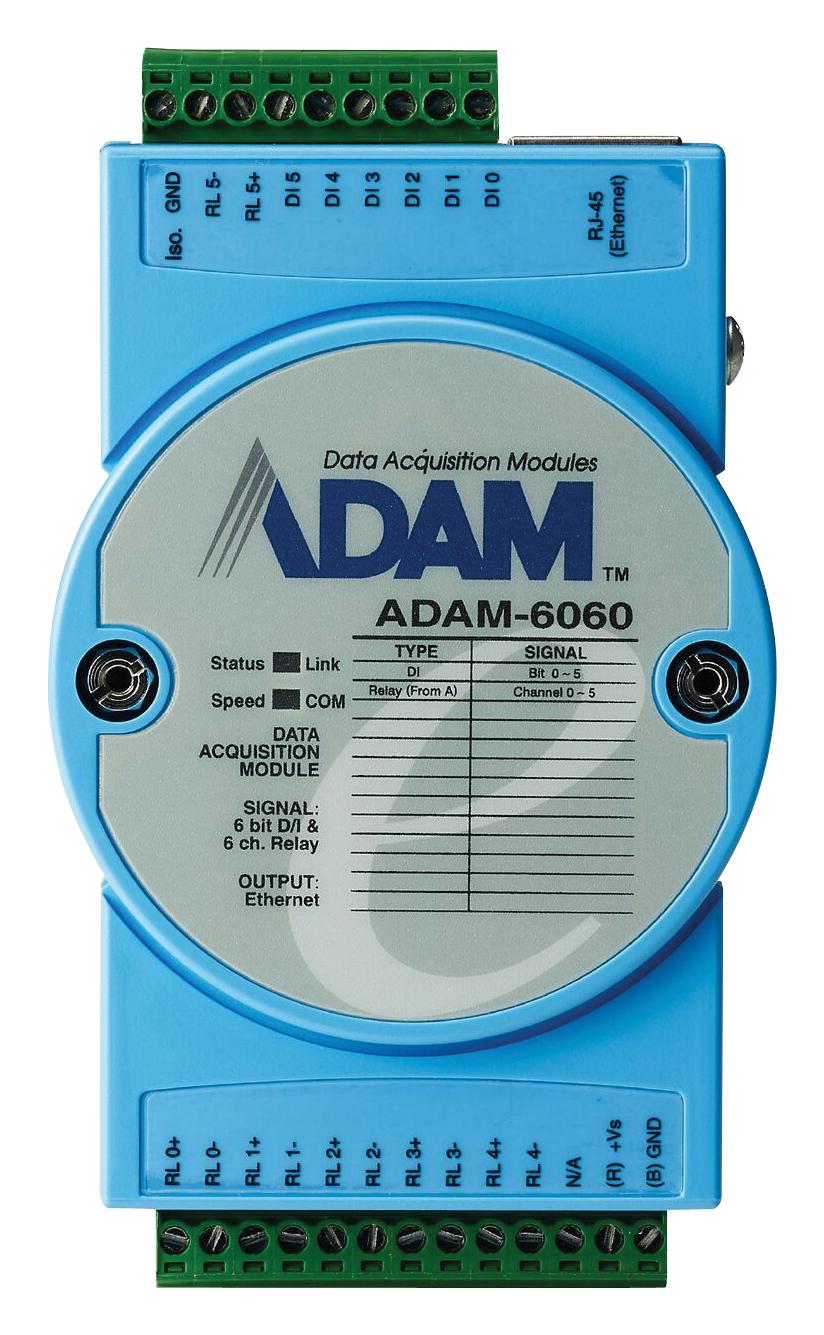

Advantech Automation ADAM6060D Digital Input and Relay Module
The ADAM-6060 series features powerful 6-channel digital input and relay modules designed for automation and control applications. These modules support Modbus TCP communication, peer-to-peer networking, and graphic condition logic for autonomous operation. With easy configuration via an intuitive utility, they enable remote monitoring, flexible addressing, and intelligent control. The modules are suitable for industrial automation, integrating seamlessly with web protocols like HTTP and DHCP, making them ideal for diverse control systems. Their robust construction and multiple interface options ensure reliable performance in demanding environments.
Advantech Automation ADAM6060D Digital Input and Relay Module Specifications:
- LAN 10/100Base-T(X) Ethernet port
- Power Consumption: 2 W at 24 VDC (ADAM-6060), 2.5 W at 24 VDC (ADAM-6066)
- Connectors: RJ-45 (LAN), screw terminal block (I/O and power)
- Power Input: 10-30 VDC
- Digital Inputs: 6 dry or wet contact channels, logic level 0: close to GND, logic level 1: open or 10-30 V
- Supports 3 kHz counter and frequency inputs, keep/discard counter values when powered off
- Relay Outputs: 6, contact ratings resistive: ADAM-6060: 120 V at 0.5 A, ADAM-6066: 250 V at 5.8 A
- Breakdown Voltage: 500 V AC, relay on delay: 7 ms, off delay: 3 ms, total switching time: 10 ms
- Isolation Voltage: 2000 V DC, supports pulse output, power reversal protection
- Operating Temperature: -10°C to 70°C (14°F to 158°F); -40°C to 70°C for D version; -20°C to 80°C for D version
- Operating Humidity: 20-95% RH non-condensing; Storage Temperature: -40°C to 80°C
- Enclosure: ABS+PC, dimensions 70x120x30 mm, wall or DIN-rail mounting options
Buy the Buy ADAM Series Module Part Number ADAM6060D Online
Discover the ADAM-6060 series module providing six digital inputs and six relay outputs for industrial automation. Supports Modbus TCP, web protocols, and peer-to-peer networking, enabling seamless remote control and monitoring. Easy configuration through intuitive utilities, flexible addressing, and compatibility with web languages like HTML5 and JavaScript make it ideal for diverse automation needs. Its robust design ensures reliable operation in demanding environments, with multiple mounting options including DIN-rail and wall mounting, making it the perfect choice for integrating complex control systems efficiently.
Order your ADAM series digital input and relay module ADAM-6060 today and enhance your automation projects with reliable and flexible control solutions.
