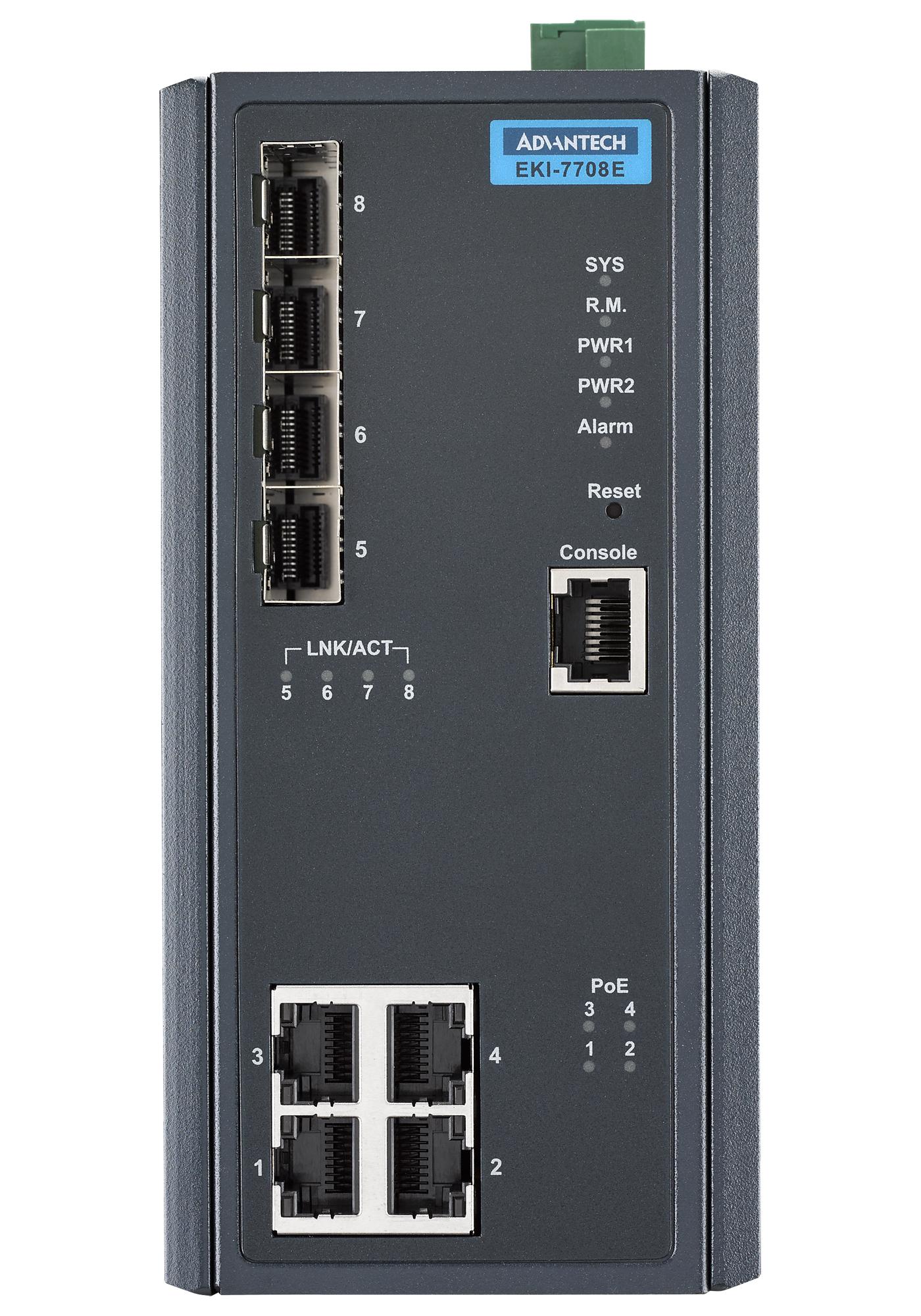

Advantech Automation EKI7708E4FPIAE Industrial Ethernet Switch
The EKI-7708E-4FPI is a high-performance industrial Ethernet switch featuring four 10/100Base-T/TX RJ-45 ports and four SFP slots, supporting flexible fiber optics expansion. It provides up to 30W per PoE port, enabling powering of high-consumption devices, and features advanced redundancy with X-Ring Pro recovery times under 20ms for network stability. Operating in robust environments with a wide -40°C to 75°C temperature range, it is NEMA TS2 rated and compliant with EN50121-4 railway standards, ideal for traffic and railway applications requiring reliability and high availability.
Advantech Automation EKI7708E4FPIAE Industrial Ethernet Switch Specifications:
- Port 4x 10/100Base-T/TX RJ-45, 4x SFP (mini-GBIC)
- PoE Power Output: Up to 30W per port
- Power Input: Dual 48 V DC with redundancy
- Operating Temperature: -40°C to 75°C (EKI-7708E-4FPI), -10°C to 60°C (EKI-7708E-4FP)
- Enclosure: Metal Shell, IP 30 protection
- Dimensions: 74 x 152 x 105 mm (2.91" x 5.98" x 4.13")
- Certifications: CE, FCC, EN 61000-4 series EMC standards, NEMA TS2
- Network Features: VLAN, GVRP, Port Mirroring, IGMP Snooping, multicast support
- Redundancy: X-Ring Pro (recovery < 20ms), STP, RSTP, MSTP
- Management: SNMP v1/v2c/v3, WEB, Telnet, SSH, SSL, NTP
- Safety: UL, CE, FCC Class A compliance
- Environment: Shock and vibration resistant, suitable for harsh settings
Buy the Advantech EKI-7708E-4FPI – Reliable Industrial Ethernet Switch for Traffic and Railway Applications
Secure your industrial network with the Advantech EKI-7708E-4FPI. Featuring four 10/100Base-T/TX PoE ports and four fiber SFP modules, it offers high power output and flexible fiber connectivity. Equipped with ultra-fast X-Ring Pro redundancy ensuring network stability with recovery times under 20ms. Its wide temperature range of -40°C to 75°C and NEMA TS2 rating make it perfect for traffic and railway applications. Easy management via SNMP, WEB, and Telnet ensures seamless integration and monitoring.
Buy Advantech EKI-7708E-4FPI now and experience unmatched reliability and performance in demanding industrial and railway network environments.
Frequently Asked Questions
Where can I buy Advantech Automation EKI7708E4FPIAE?
You can click on the BUY or RFQ button to purchase EKI7708E4FPIAE from an authorized Advantech Automation distributor.
How do I troubleshoot issues or seek technical support for part EKI7708E4FPIAE?
You can download the EKI7708E4FPIAE datasheet or visit the Advantech Automation website for support.
Who is the manufacturer of EKI7708E4FPIAE?
Advantech Automation
