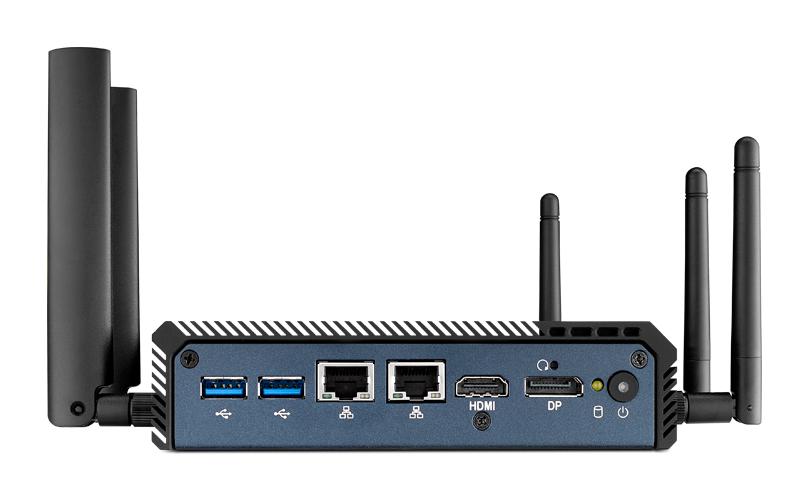

Advantech Automation UTX3117FSS6A1N Industrial Control Box
The UTX-3117 is a fanless compact box PC equipped with Intel Apollo Lake E3900 series and N series processors, designed for industrial automation and IoT applications. It features a palm-size form factor of 128 x 152 x 37 mm, supporting dual GbE LAN, multiple expansion slots including M.2, Mini PCIe, SATA, and a 2.5" SSD bay. Its robust construction with aluminum, wide temperature range of -20 to 60°C, and certification for safety and EMC make it ideal for demanding environments. Compatible with Windows 10 and Wind River Linux, it supports IoT platforms like WISE-PaaS and AWS Greengrass, making it a versatile solution for industrial control and embedded system integrations.
Advantech Automation UTX3117FSS6A1N Industrial Control Box Specifications:
- Processor: Intel Apollo Lake E3900/N series
- Processor System Cache: 2MB
- Memory: Dual channel DDR3L 1867MHz, up to 8GB, two 204-pin SO-DIMM sockets
- Display Interface: HDMI up to 3840 x 2160 @ 30Hz, DisplayPort 4096 x 2160 @ 60Hz
- Ethernet: Dual Gigabit LAN, LAN1 Intel 1210AT, LAN2 Realtek RTL8111G
- Serial Ports: RS-232 with 5V/12V support, RS-422/485 full duplex
- USB Ports: 2 USB 3.0
- Storage: 4 SATA ports support SSD, 1x 2.5" SSD bay, 1x M.2 E key for Wi-Fi, 1x mSATA mini PCIe, 1x full-size mini PCIe for 3G/LTE
- Power Input: 12-24V DC, typical power consumption max 7.32W
- Construction: Aluminum enclosure, VESA, wall, DIN rail mounting options
- Operating Temperature: -20°C to 60°C (E3900 Series), -0°C to 55°C (N series with RF modules)
- Certifications: CE/FCC Class B, safety standards CB, UL, CCC, BSMI
Buy the Industrial Automation Series Compact Box: UTX-3117
Purchase the UTX-3117 industrial control box online today to harness the power of Intel Apollo Lake processors, comprehensive expansion options, and wide temperature support. Its fanless design ensures silent operation and enhanced durability in harsh environments. With multiple connectivity and storage options, it is perfect for automation, embedded systems, and IoT deployments. Easily integrate with Windows 10 or Linux platforms with certified safety and EMC compliance. Secure your automation project by ordering this versatile, reliable, and compact industrial PC online now.
Buy UTX-3117 fanless industrial PC now and experience unmatched reliability and performance for automation and IoT applications.
