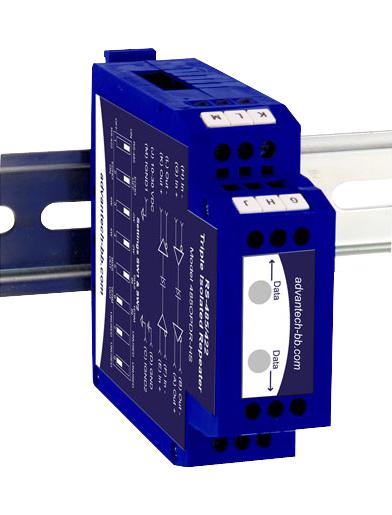

Advantech Automation BB485OPDRHS High-Speed RS-422/485 Repeater
The high-speed, isolated RS-422/485 repeater model BB-4850PDR-HS extends device network ranges up to 1.2 km at data rates up to 1.5 Mbps. It provides 2 kV digital isolation, IEC ESD protection, and transient voltage suppression, ensuring reliable operation in industrial environments. Designed with a DIN rail mountable enclosure, it supports 2-wire and 4-wire RS-485 and RS-422 protocols, making it ideal for fieldbus systems like Profibus. Powered by external 10-30 Vdc supply, the repeater enhances network stability and expands node connectivity efficiently.
Advantech Automation BB485OPDRHS High-Speed RS-422/485 Repeater Specifications:
- Supports RS-422 and RS-485 protocols (2-wire and 4-wire)
- Data rate: up to 1.5 Mbps
- Isolation voltage: 2000V
- Immunity: IEC ESD 8 kV, transient suppression 600 W
- Operating temperature: -40°C to +80°C
- Storage temperature: -40°C to +85°C
- Dimensions: 25 x 7.9 x 9.50 mm (1.0 x 3.1 x 3.8 in)
- Enclosure: Plastic, DIN rail mountable
- Power supply: 10-30 Vdc external (sold separately)
- Connector: Terminal block for data and power connections
- Humidity: 0 to 95%, non-condensing
- Certifications: FCC Class B, CE, CISPR Class B
- MTBF: 117,376 hours
- Response time: <1 pico-second
Buy the Advantech Series High-Speed RS-422/485 Repeater: BB-4850PDR-HS
Enhance your industrial communication network with the high-speed RS-422/485 repeater. Supporting data rates up to 1.5 Mbps and extending network range up to 1.2 km, it offers superior isolation and surge protection. Designed for DIN rail installation, it ensures reliable data transmission in harsh environments. With 2 kV digital isolation, IEC ESD protection, and a rugged plastic enclosure, this repeater is perfect for expanding your fieldbus systems like Profibus, ensuring stable, long-distance communication with robust industrial-grade features.
Buy Advantech BB-4850PDR-HS now and experience unmatched reliability, extended network range, and industrial-grade isolation for your fieldbus systems.
