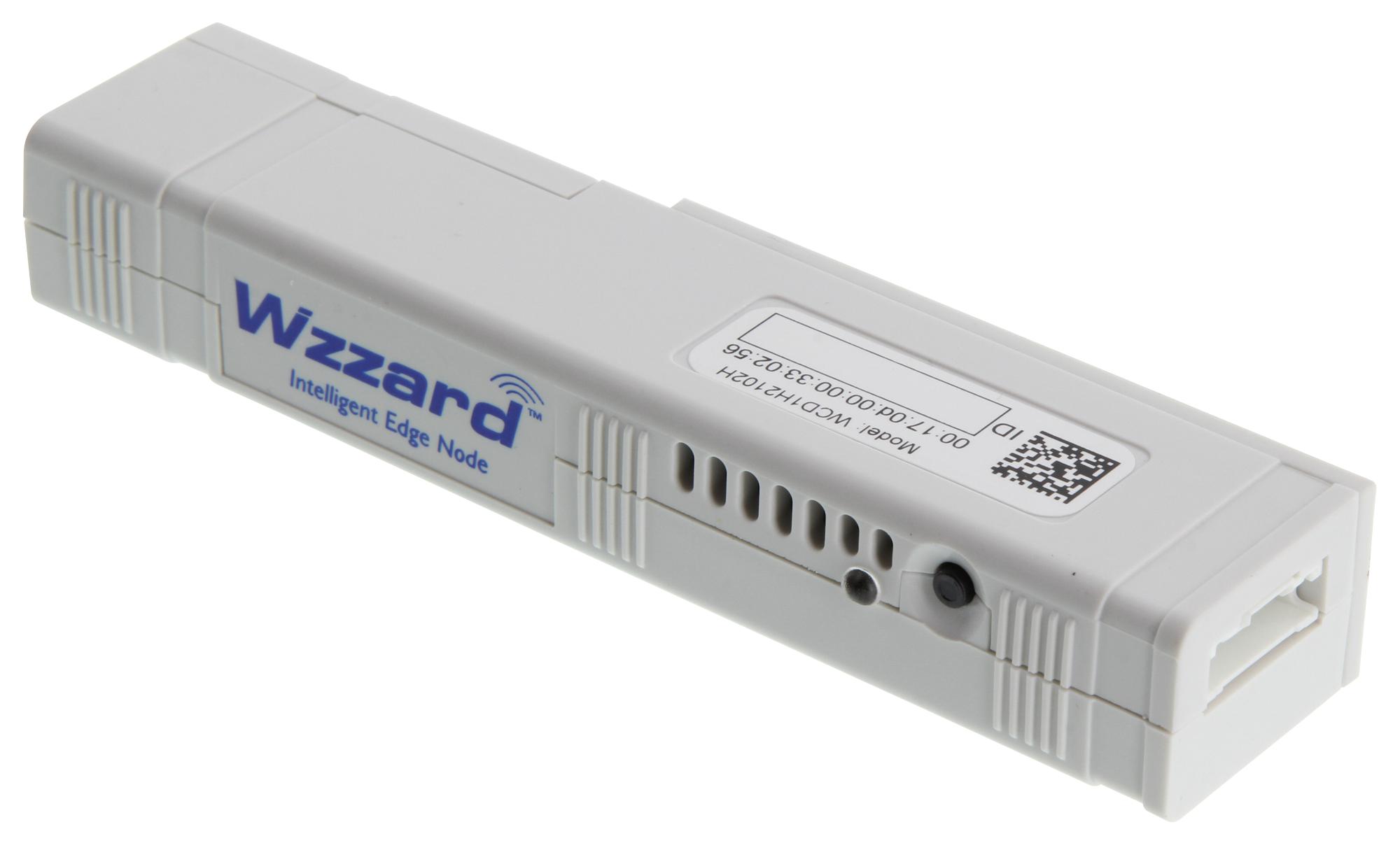

Advantech Automation BBWCD1H2102H Wireless Monitoring Sensor
The Wzzard Mesh Wireless Sensor is a versatile monitoring node designed for commercial applications, supporting temperature and humidity sensing. It utilizes ultra-low power 802.15.4e SmartMesh IP technology, ensuring reliable wireless communication in demanding environments. The sensor connects seamlessly to industry-standard analog or digital sensors, with internal temperature and humidity sensors included. Suitable for indoor use, it features a 3.6V lithium battery with a 5-year lifespan, operating in temperatures from -20°C to +70°C. Easy to install, it offers self-configuration within mesh networks, supporting up to 100 nodes and robust connectivity even in RF-challenged environments.
Advantech Automation BBWCD1H2102H Wireless Monitoring Sensor Specifications:
- Wireless standard: 802.15.4e, SmartMesh IP
- Operating temperature: -20°C to +70°C
- Battery: 3.6V 1650mAh Lithium Thionyl Chloride, 5-year life
- Physical size: Diameter 145mm, Height 33.5mm
- Communication range: Indoor 100m, Outdoor 200m
- Battery life: 5 years at 1-minute sampling
- Environmental protection: VHB adhesive strip, mounting bracket included
- Network: Mesh wireless with 99.999% connectivity reliability
- Supported sensors: Temperature, humidity, analog/digital inputs
- Encryption: 128-bit AES
- Compliance: FCC, IC, RoHS, WEEE
- Frequency band: 2.400 - 2.4835 GHz, 15 channels
- Max data rate: 250 kbps
- Output power: +8 dBm (transmit), 0 dBm (receive)
- Vibration resistance: 2g, shock resistance: 50g
- Size (D x H): 145mm x 33.5mm
- Weight: 0.2 lbs (0.09 kg)
Buy the Advantech Series Mesh Wireless Monitoring Node: BBWCD1H2102H
Purchase the Advantech Wireless Monitoring Sensor BBWCD1H2102H online today and enjoy seamless, reliable indoor temperature and humidity monitoring. Designed for commercial applications, this sensor uses advanced SmartMesh IP technology ensuring up to 99.999% connectivity even in RF-challenged environments. Its easy installation, self-configuring mesh network, and long battery life make it ideal for refrigeration, food storage, and industrial environments. Enhance your operational efficiency with real-time data, robust security, and scalable network integration—order now to ensure continuous, precise environmental monitoring.
Get Advantech BBWCD1H2102H today—built for reliable indoor temperature and humidity monitoring in demanding commercial environments.
