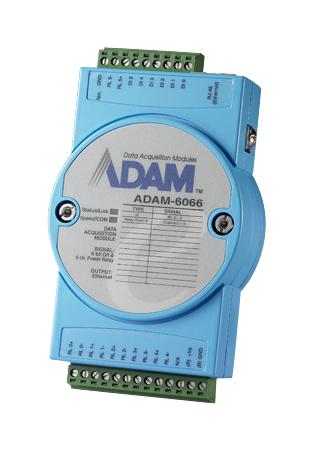

Advantech Automation ADAM6066D Industrial Communication Module
The ADAM-6066 is a versatile industrial communication module providing six digital inputs and six relay outputs for reliable automation and control. Designed for industrial environments, it supports Modbus TCP and various other protocols such as UDP, HTTP, and SNMP, ensuring seamless integration with existing systems. Its compact dimensions of 70x120x30 mm and mounting options including DIN rail, wall, and stack mounting make it suitable for diverse applications. The device operates within a temperature range of -40°C to 70°C (or 80°C for D version) and features a robust ABS+PC enclosure for durability and long-term operation in harsh conditions.
Advantech Automation ADAM6066D Industrial Communication Module Specifications:
- Dimensions: 70x120x30 mm
- Enclosure: ABS+PC
- Mounting: DIN rail, wall, stack
- Digital Inputs: 6, Dry and Wet Contact support, 3 kHz counter input, inverted DI support
- Relay Outputs: 6, resistive contact rating 120 V at 0.5 A (ADAM-6060), 250 V at 5.8 A or 3 A (ADAM-6066)
- Switching Time: 10 ms total (Relay ON 7 ms, OFF 3 ms)
- Isolation Voltage: 2000 V
- Power Input: 10-30 VDC
- Operating Temperature: -40°C to 70°C (or 80°C for D version), humidity 20-95% RH non-condensing
- Supported Protocols: Modbus/TCP, TCP/P, UDP, DHCP, SNMP, HTTP
- Connectors: RJ-45 for LAN, screw terminal for I/O and power
- Power Consumption: 2 W @ 24 VDC for ADAM-6060
- Watchdog Timer: System (16 sec), programmable communication
- Certifications: FCC, CE
Buy the ADAM Industrial Modules ADAM-6066 – Reliable Ethernet Control for Industrial Applications
Upgrade your industrial automation systems with the ADAM-6066 communication module. Featuring six digital inputs and six relay outputs, it supports Modbus TCP and other protocols for seamless integration. Its compact size of 70x120x30 mm allows easy installation in diverse environments. Designed with a durable ABS+PC enclosure, it operates efficiently from -40°C to 70°C (or 80°C for D version). Ideal for factory control, building automation, and remote monitoring, purchase online today to ensure reliable, scalable control solutions.
Buy ADAM-6066 industrial communication module now and enhance your automation setup with robust digital inputs and relay outputs for factory control systems.
Frequently Asked Questions
Where can I buy Advantech Automation ADAM6066D?
You can click on the BUY or RFQ button to purchase ADAM6066D from an authorized Advantech Automation distributor.
How do I troubleshoot issues or seek technical support for part ADAM6066D?
You can download the ADAM6066D datasheet or visit the Advantech Automation website for support.
Who is the manufacturer of ADAM6066D?
Advantech Automation
