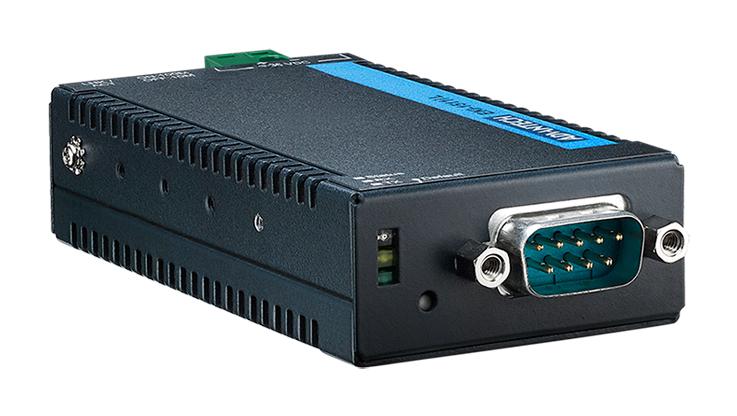

Advantech Automation EKI1511LA Serial Device Server
The EKI-1511LA is an entry-level serial device server designed for industrial networking environments, connecting RS-232 and RS-422/485 devices such as PLCs, sensors, meters, and barcode readers to Ethernet LANs. It supports 10/100 Mbps Ethernet, virtual COM port redirection, TCP/UDP modes, and easy configuration via Windows utility, Telnet, or web browser. With built-in 8-kV ESD protection, wide operating temperature (-10°C to 60°C, -40°C to 75°C for I models), and compact metal enclosure, it ensures reliable communication for industrial applications, eliminating the need for intermediate PCs and enabling seamless device integration.
Advantech Automation EKI1511LA Serial Device Server Specifications:
- Ethernet: 10/100 Mbps, 1 port, RJ45 connector, IEEE 802.3/802.3u compatible, built-in 2.25 kV magnetic isolation protection
- Serial Port: RS-232 or RS-422/485, DB9 male connector, Data Bits 5/6/7/8, Stop Bits 1/1.5/2, Parity None/Odd/Even/Space/Mark, Flow Control XON/XOFF, RTS/CTS
- Baud Rate: 300 bps to 230.4 Kbps, Serial signals include TxD, RxD, CTS, RTS, GND for RS-232; TxD+, TxD-, RxD+, RxD-, GND for RS-422/485
- Dimensions: 46 x 85.1 x 21.2 mm, Metal enclosure, supports DIN-rail and wall mounting, weight 0.127 kg
- Power: 9-36 V DC input via terminal block, consumes 1W
- Environmental: Operating temperature -10°C to 60°C; I models -40°C to 75°C; Storage -40°C to 85°C, Humidity 10-95% RH
- Certifications: CE, FCC Part 15 Subpart B (Class A), RoHS compliant
- Supported software: Windows 2000/XP/Vista/7/8/8.1/10, Server 2003/2008/2012, Linux, protocols include SNMP, TCP/IP, UDP, DHCP, HTTP, DNS, SMTP, ARP, NTP
Buy the Buy Industrial Serial Device Server Part Number EKI-1511LA Online
Enhance your industrial automation system by purchasing the EKI-1511LA serial device server online today. Designed for connecting RS-232 and RS-422/485 devices to Ethernet LANs, it offers easy configuration, TCP/UDP modes, virtual COM port support, and robust ESD protection. Its compact metal enclosure and wide temperature range make it ideal for harsh environments. Reliable and easy to install, this device enables seamless device integration, reduces maintenance, and supports remote management for industrial networking applications, ensuring operational efficiency and long-term performance.
Order your industrial series EKI-1511LA serial device server today and enhance your device connectivity with reliable Ethernet communication.
Frequently Asked Questions
Where can I buy Advantech Automation EKI1511LA?
You can click on the BUY or RFQ button to purchase EKI1511LA from an authorized Advantech Automation distributor.
How do I troubleshoot issues or seek technical support for part EKI1511LA?
You can download the EKI1511LA datasheet or visit the Advantech Automation website for support.
Who is the manufacturer of EKI1511LA?
Advantech Automation
