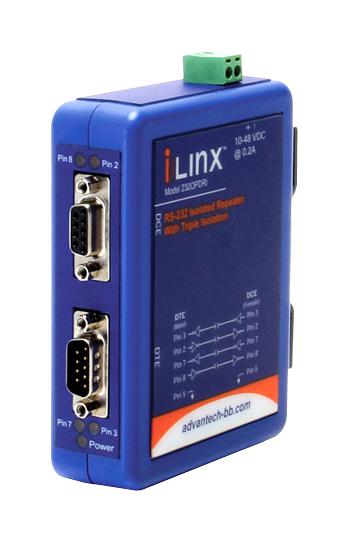

Advantech Automation BB232OPDRI Industrial RS-232 Repeater
The Model 2320PDRI is a high-quality industrial RS-232 isolated repeater designed to ensure safe and reliable data transmission in rugged environments. It features 2KVRMS optical isolation on both data ports, protecting equipment from ground loops and surges. It supports data rates up to 115.2 Kbps and operates reliably in temperatures from -40°C to 80°C, ideal for industrial control systems. Packaged in a durable IP30 plastic enclosure with DIN rail mounting, it connects via DB9 connectors, making integration simple and efficient for various industrial automation applications.
Advantech Automation BB232OPDRI Industrial RS-232 Repeater Specifications:
- Serial Connector: DB9 F (DCE), DB9 M (DTE)
- Data Rate: Up to 115.2 Kbps
- Isolation: 2000 V 3-Way Optical Isolation, 4 minutes duration
- Input Voltage: 10 to 48 VDC (56 VDC maximum)
- Power Consumption: 0.6 W typical
- Wire Size Accepted: 28 to 12 AWG, Copper wire only
- Dimensions: 123 x 11.3 x 3.2 cm (4.9 x 4.5 x 1.3 inches)
- Enclosure: IP30 Plastic, 35 mm DIN Mount
- Operating Temperature: -40°C to 80°C
- Storage Temperature: -40°C to 85°C
- Operating Humidity: 0 to 95% Non-condensing
- MTBF: 177,250 Hours
Buy the Buy BB SMARTWORX Industrial RS-232 Isolated Repeater Part Number BB232OPDRI Online
Upgrade your industrial communication setup with the BB SMARTWORX 2320PDRI RS-232 isolated repeater. It offers 2000 V optical isolation on both ports, supports data rates up to 115.2 Kbps, and operates reliably from -40°C to 80°C. Its rugged IP30 plastic enclosure with DIN rail mounting makes integration into control panels straightforward. With a comprehensive lineup of approvals including UL and ULc, and adherence to EMC standards, this repeater guarantees durability, safety, and seamless data transmission in harsh industrial environments. Perfect for safeguarding your equipment against surges and ground loop issues.
Order your BB SMARTWORX 2320PDRI industrial RS-232 isolated repeater today and enhance your control system’s reliability with rugged, high-protection data repeaters.
