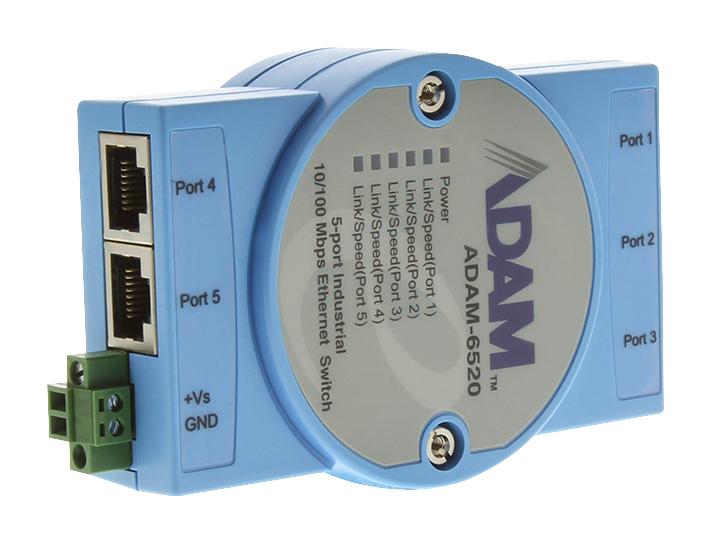

Advantech Automation ADAM6520BE Industrial Ethernet Switch
The ADAM-6520BE is an industrial-grade 5-port Ethernet switch supporting 10/100 Mbps network speeds. Designed for fast and cost-effective network expansion, it allows connection of up to 5 workstations and automatically detects network speeds. The switch supports auto crossover for flexible connections and can be mounted in various ways, including DIN rail, wall, or stack mounting. Equipped with LED indicators on each port for link status and activity, it facilitates easy troubleshooting and monitoring. The device features high-speed transmission, protection for power and Ethernet ports, and operates within a wide temperature range of -10°C to 70°C. Compliance includes IEEE 802.3, 802.3u, and 802.3x standards, with a transmission distance of up to 100 meters. Power requirements range from 10 to 30 VDC, with a maximum power consumption of 2.4W.
Advantech Automation ADAM6520BE Industrial Ethernet Switch Specifications:
- Supports 10/100 Mbps Ethernet speeds with auto-negotiation
- Supports full/half duplex flow control
- Supports MDI/MDI-X auto crossover
- Maximum transmission distance: 100 meters
- Operating temperature: -10°C to 70°C, stack: -10°C to 60°C
- Power input: 10-30 VDC, maximum power consumption: 2.4W
- Surge protection: 3,000 Voc for power, 4,000 Voc ESD for Ethernet ports
- Physical dimensions: 70 x 102 x 27 mm
- Mounting options: DIN rail, Wall, Stack
- LED indicators: Power, Link/Speed for each port
- Certifications: UL, FCC, CE, EN55024/EN55022
- Enclosure: ABS+PC, IP30 rated
- Supported standards: IEEE 802.3, 802.3u, 802.3x
- Humidity: 20-95% non-condensing
- Compatible with industrial environments, shielded design for high reliability
Buy the Industrial Brand ADAM – Reliable Ethernet Switch for Industrial Applications
Enhance your industrial network with the ADAM-6520BE Ethernet switch, offering five ports supporting 10/100 Mbps speeds. Its auto-negotiation feature ensures seamless network connections, while auto crossover allows flexible wiring. The switch is easy to mount on DIN rails, walls, or stacks for versatile deployment. LED indicators assist in quick troubleshooting, ensuring minimal downtime. Designed for harsh environments, it features surge and ESD protection, operates over a wide temperature range, and complies with industry standards. Invest in reliable, durable network expansion today.
Buy ADAM-6520BE now and experience reliable industrial Ethernet connectivity with robust protection and flexible mounting options.
