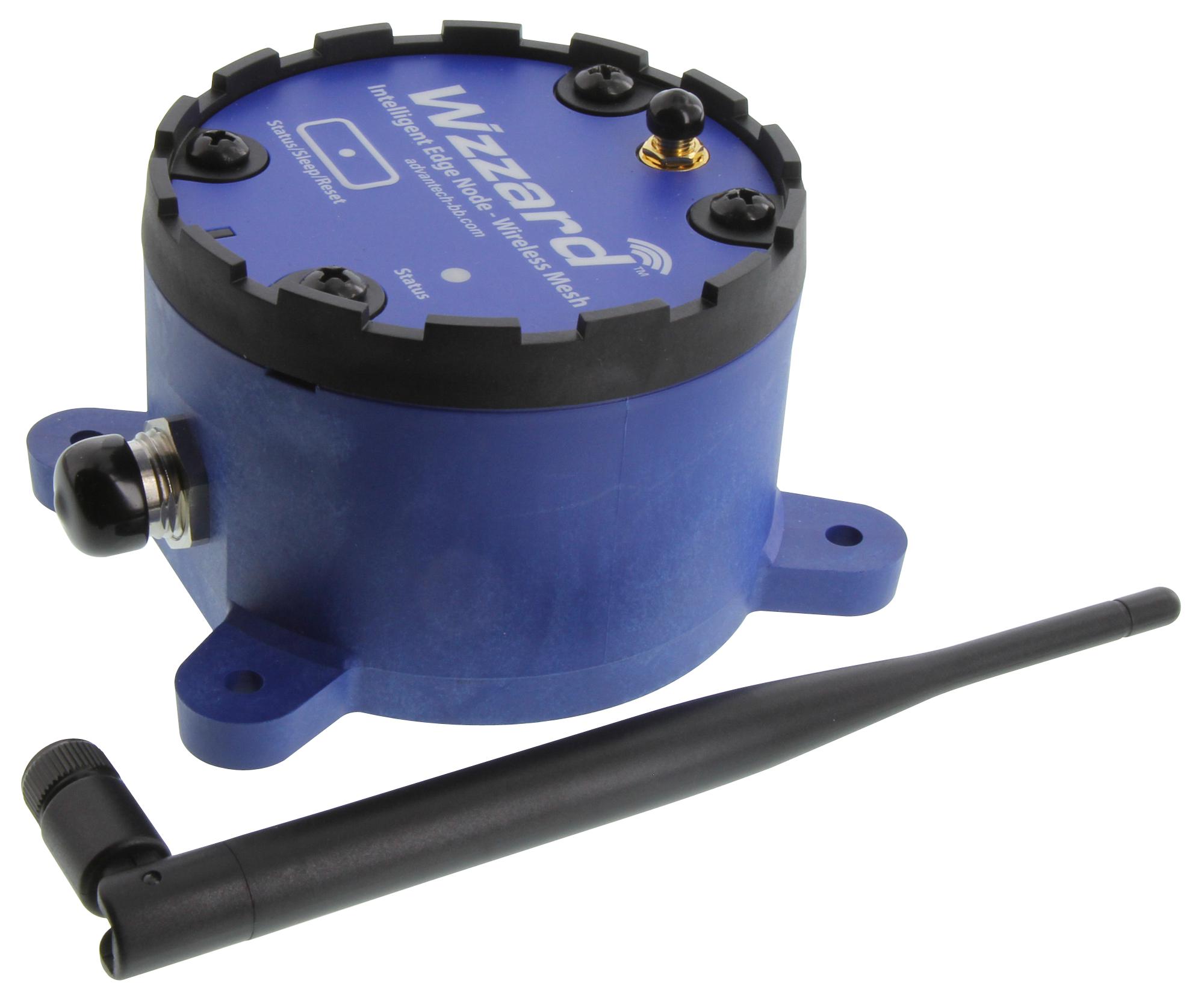

Advantech Automation BBWSD2M31010 Wireless Sensor Node
The Wzzard Mesh Wireless Sensors series offers industrial-grade, IP67-rated sensor nodes featuring ultra-low power 802.15.4e SmartMesh IP technology. Designed for rugged environments, these sensors connect seamlessly to many industry-standard external sensors via M12 connectors or conduit fittings, supporting analog, digital, and thermocouple inputs. Equipped with internal temperature sensors, they enable reliable wireless mesh networks with up to 99.999% connectivity. Ideal for indoor and outdoor industrial applications, they feature long battery life exceeding 5 years and secure AES-128 encryption for data integrity, making them a versatile choice for scalable IoT deployments.
Advantech Automation BBWSD2M31010 Wireless Sensor Node Specifications:
- Internal Batteries: 2x 3.6V 2400 mAH Lithium Thionyl Chloride AA, >5 years battery life
- Voltage Range: 40-30 VDC, 40mA peak, Vbat power out, 3.3V reference
- Enclosure: IP67 rated, fiber reinforced polyester PBT, 194 mm dimensions, 0.75 lb weight
- Wireless Protocol: IEEE 802.15.4e, SmartMesh IP, 2.4 GHz frequency band, 15 channels, 250 kbps data rate
- Range: Indoor 100 m, outdoor 300 m, Receiver Sensitivity PER=1%, output power 8 dBm
- Sensor Inputs: Analog 0-10 VDC, 0-20 mA, 4-20 mA; Digital 0-48 VDC, frequency 1-1K Hz; Thermocouple types J, K, N, R, S, T, B, E; Temperature sensor included
- Connection Options: M12 connector (not UL for outdoor), conduit fitting UL Type 3 outdoor compatible, Includes sensor interface cable and external omnidirectional antenna
- Operating Conditions: -40°C to +80°C, humidity 0-95%, non-condensing, Electromagnetic compatibility with CE and FCC standards
- Security: 128-bit AES encryption, message integrity checks, synchronized key rotation
Buy the Advantech Series BB WSD2x Wireless Sensors: BBWSD2M31010
Enhance your industrial automation with the Advantech BBWSD2M31010 wireless sensor node, offering IP67 protection, long battery life over 5 years, and flexible connection options for analog, digital, and thermocouple sensors. Its robust mesh network supports reliable data transmission over indoor and outdoor environments. Easy to install with conduit or M12 connectors, this sensor ensures secure data communication with AES encryption. Perfect for industrial IoT applications, it enables scalable and maintenance-free sensor monitoring, facilitating optimal control and data acquisition for modern automation systems.
Get Advantech BBWSD2M31010 wireless sensor node today—built for durability and reliable industrial IoT connectivity.
