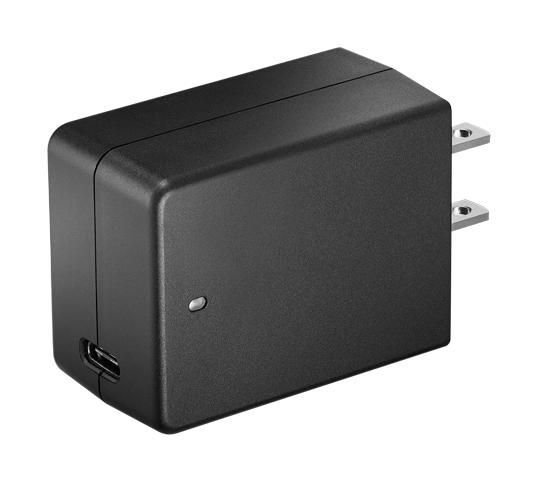

Advantech Automation PSAA45WMU Power Delivery USB-C Adapter
The PSA-A45W Series is a compact 45W power delivery USB-C adapter designed for reliable performance in industrial and consumer applications. Featuring enhanced Power Delivery (PD), it automatically detects outputs of 5/9/12/15/20V DC, ensuring efficient charging for a wide range of devices. Equipped with built-in protections including OVP, OCP, SCP, and OTP, it meets international safety and efficiency standards. Compatible with US and UK plugs, it is ideal for fast, safe, and versatile charging in various environments, making it suitable for portable devices, industrial equipment, and electronics requiring reliable power sources.
Advantech Automation PSAA45WMU Power Delivery USB-C Adapter Specifications:
- Input Voltage: 90 - 264 Vac
- Input Frequency: 47 - 63Hz
- Input Current (max): <1.20A at 264Vac
- Max Inrush Current: 20A at 230Vac
- Leakage Current: <250 uA at 264Vac
- Output Power: 45 Watts
- Output Voltage: 5V, 9V, 12V, 15V, 20V
- Rated Current: 3A (for 5V, 9V, 12V, 15V, 20V)
- Output Ripple & Noise: 350 mVp-p @ 20 MHz
- Line Regulation: 33%
- Load Regulation: 35%
- Rise Time: 30 ms max
- Over Voltage Protection: 7.5V to 26V max depending on voltage
- Short Circuit Protection: Latch-off without damage, auto recovery
- Over Temperature Protection: 100°C + 10%
- Operating Temperature: 0-40°C
- Operating Humidity: 80% RH, non-condensing
- Operating Altitude: 2000 meters
- Safety Certifications: UL, cUL, IEC 62368-1, BSMI, FCC Part 15 B
- Dimensions: 40.5 x 53.5 x 28.0 mm (US Plug), 40.5 x 60.5 x 28.0 mm (UK Plug)
- Material: Plastic casing with USB Type C connector
- Weight: 949 - 1019 grams
- Inlet Plugs: North America, UK
- Built-in Protections: OVP, OCP, SCP, OTP
- Reliability: MTBF 300,000 hours
- Warranty: 3 Years
Buy the Accesories Power Supply 45W – Reliable USB-C for Industrial Applications
Experience fast, reliable charging with the PSA-A45W Series USB-C power adapter. Designed for versatile use, it automatically detects voltage levels from 5V to 20V, providing optimal power for your devices. Built with advanced safety protections including OVP, OCP, SCP, and OTP, ensuring safe operation at all times. Its compact design and compatibility with US and UK plugs make it ideal for industrial, portable, and everyday electronic devices. Purchase online today for dependable performance and peace of mind in demanding environments.
Get PSA-A45W Series USB-C power adapter today—built for precision and long-lasting durability in industrial and portable device charging.
Frequently Asked Questions
Where can I buy Advantech Automation PSAA45WMU?
You can click on the BUY or RFQ button to purchase PSAA45WMU from an authorized Advantech Automation distributor.
How do I troubleshoot issues or seek technical support for part PSAA45WMU?
You can download the PSAA45WMU datasheet or visit the Advantech Automation website for support.
Who is the manufacturer of PSAA45WMU?
Advantech Automation
