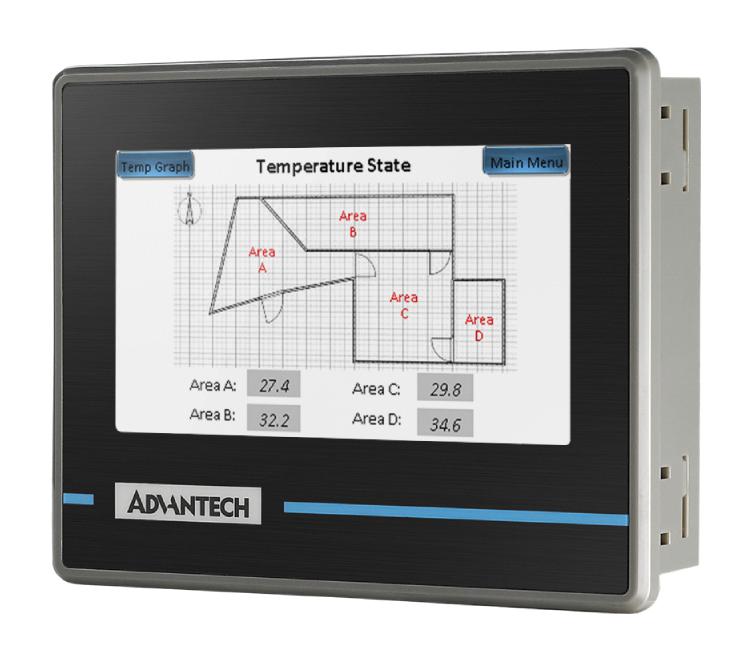

Advantech Automation WOP204KNAE Industrial Operator Panel
The WOP-204K series is a 4.3-inch WQVGA TFT Ethernet-enabled operator panel designed for industrial automation applications. Powered by an ARM9 32-bit RISC processor with 64 MB SDRAM and 128 KB backup memory, it supports over 500 PLC communication protocols, ensuring wide compatibility. Its IP66-rated front panel ensures durability in harsh environments, while the resistive touchscreen facilitates user interaction. The panel operates with HMI RTOS, features a 400 cd/m² luminance display, and includes multiple communication interfaces such as serial ports, Ethernet, and USB. Easy installation and operation in landscape or portrait modes make it suitable for diverse industrial setups.
Advantech Automation WOP204KNAE Industrial Operator Panel Specifications:
- Display Size: 4.3" WQVGA TFT LCD
- Max. Resolution: 480 x 272
- Display Colors: 65,536
- Luminance: 400 cd/m²
- Front Panel: IP66-rated
- Power Supply Voltage: 24V ±10% (AC/DC)
- Power Consumption: 10W
- Operating Temperature: -10°C to 60°C
- Storage Temperature: -20°C to 70°C
- Vibration Resistance: 5-500Hz, 1Grms
- Humidty: 95% RH @ 40°C
- Processor: ARM9 32-bit RISC
- Working Memory: 64MB SDRAM
- Backup Memory: 128KB
- Storage: 128MB NAND Flash
- Ingress Protection: IP66 front panel
- Enclosure: Plastic
- Dimensions (W x H x D): 129 x 103 x 31.3 mm
- Panel Cutout: 118.5 x 92.5 mm
- Interfaces: RS-232, RS-422/485, Ethernet RJ45, USB
- Supported Software: HMINavi Designer and Runtime
- Battery Backup Memory: 128KB
- Approvals: CE, FCC, UL61010
Buy the Buy Advantech WOP-204K Part Number WOP204KNAE Online
Enhance your automation setup with the Advantech industrial operator panel, featuring a 4.3-inch resistive touchscreen, robust IP66 protection, and extensive communication options including Ethernet and serial ports. Powered by a reliable ARM9 processor with 64MB SDRAM and 128KB backup memory, it supports over 500 PLC protocols for seamless integration. Easy installation in landscape or portrait mode makes it suitable for manufacturing environments requiring durability, flexibility, and precise control. Elevate your industrial visualization and control systems by purchasing this advanced HMI solution online today.
Buy Advantech WOP-204K now and experience unmatched reliability and performance in industrial automation and HMI applications.
Frequently Asked Questions
Where can I buy Advantech Automation WOP204KNAE?
You can click on the BUY or RFQ button to purchase WOP204KNAE from an authorized Advantech Automation distributor.
How do I troubleshoot issues or seek technical support for part WOP204KNAE?
You can download the WOP204KNAE datasheet or visit the Advantech Automation website for support.
Who is the manufacturer of WOP204KNAE?
Advantech Automation
