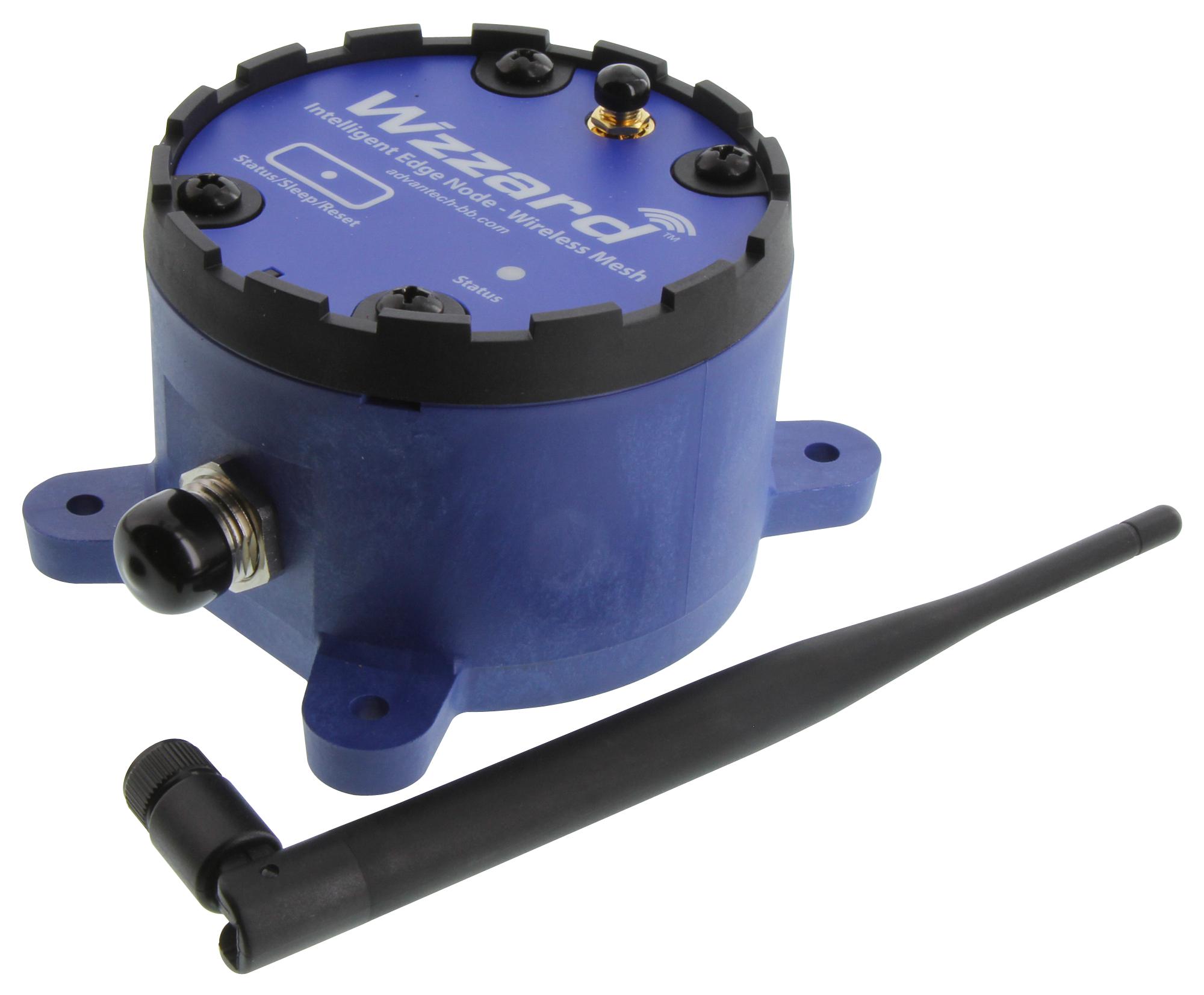

Advantech Automation BBWSD2M06010 Wireless Sensor Node
The Wzzard Mesh Wireless Sensors are industrial-grade wireless sensor nodes designed for scalable, reliable, and secure communication in demanding RF environments. They feature ultra-low power 802.15.4e SmartMesh IP technology, connect seamlessly with various industry-standard sensors via M12 connector or conduit fitting, and operate in indoor or outdoor settings with an IP67 rated enclosure. Equipped with internal temperature sensors, support for thermocouples, analog and digital inputs, these sensors place intelligence at the network edge, enabling efficient data reporting and easy deployment in industrial applications. They have a battery life exceeding five years and are suitable for hazardous locations with UL listing.
Advantech Automation BBWSD2M06010 Wireless Sensor Node Specifications:
- Power: Two 3.6V 2400mAh Lithium Thionyl Chloride AA batteries, lasting over 5 years
- Battery Voltage: >40 VDC @ 40mA peak, switched Vbat power out
- Enclosure: IP67 rated, fiber reinforced polyester PBT, dimensions: 194 mm length, 0.34 kg weight
- Wireless Protocol: 802.15.4e SmartMesh IP, 2.400-2.4835 GHz, 15 channels, data rate 250 kbps
- Wireless Range: Indoor 100 m, outdoor 300 m, rx sensitivity -101 dBm
- Antenna: Omnidirectional RP-SMA, 3.8 dBi, 2.4 GHz, included
- Input/Output: 2 Analog Inputs (0-10 VDC, 0-20 mA), 1 Digital Input, 1 Digital Output, 2 Thermocouples (J, K, N, R, S, T, B, E)
- Operating Temp: -40°C to +80°C, Storage: -40°C to +85°C, Humidity: 0-95%
- Security: 128-bit AES encryption, message integrity check, synchronized key changeovers
- Installation: Mounting ears with screws, magnetic mount option (not UL rated), suitable for industrial environment
- Additional: Internal temperature sensor, supported protocols MQTT and JSON, external antenna included
Buy the Advantech Series BB-WSD2x Wireless Sensors: BB-WSD2M06010
Purchase the Advantech BB-WSD2M06010 wireless sensor node online today and benefit from quick installation, secure data transmission, and dependable long-term operation in challenging industrial environments. Its versatile sensor interfaces include analog, digital, and thermocouple connections, all housed within an IP67 rated enclosure ensuring durability. Ideal for indoor and outdoor applications, it provides real-time data, energy efficiency, and scalable network capabilities, making it the perfect choice for industrial monitoring projects. Order now and enhance your automation system effortlessly.
Buy Advantech BB-WSD2M06010 wireless sensor node now and experience unmatched reliability and long-term industrial data monitoring.
