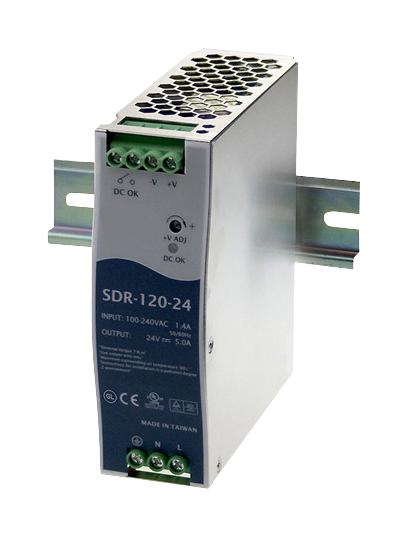

Advantech Automation BBSDR12024 industrial power supply
The SDR-120 series is a high-efficiency, 120W industrial power supply with a built-in active PFC function, suitable for DIN rail installation TS-35/7.5 or 15. It features protections against short circuit, overload, overvoltage, and over temperature. With an efficiency of up to 91%, it supports peak loads, has UL 508 certification, and complies with industrial immunity standards EN61000-6-2. Its compact design includes a DC OK relay contact, low ripple noise, and a wide input voltage range from 88 to 264VAC or 124 to 370VDC, ensuring reliable operation in demanding industrial environments.
Advantech Automation BBSDR12024 industrial power supply Specifications:
- Power Output: 120W
- Input Voltage Range: 88~264VAC / 124~370VDC
- Output Voltages: 12V, 24V, 48V
- Rated Current: 104A (12V), 5A (24V), 2.54A (48V)
- Peak Power: 180W (3 sec)
- Efficiency: up to 91%
- Ripple & Noise: 100mVp-p (12V/24V), 420mVp-p (48V)
- Voltage Tolerance: ±1.0%
- Protection: Short circuit, Overload, Overvoltage, Over temperature
- Operating Temperature: -25°C to +70°C
- Dimensions: 125.2mm(W) x 113.5mm(H) x 40mm(D)
- Mounting: TS-35/7.5 or TS-35/15 DIN rail
- Certifications: UL 508, EN61000-6-2
- Working Humidity: 20% to 95% RH non-condensing
- MTBF: 289,900 hours
Buy the Mean Well 120W – Reliable Industrial Power Supply for Industrial Applications
Upgrade your industrial setup with the reliable and efficient SDR-120 series power supply. Designed for DIN rail mounting, it offers peak load capacity, built-in protections, and UL approval to ensure safe, continuous operation. Its wide input voltage range accommodates various power sources, while the low ripple and noise provide stable outputs for sensitive electronics. Perfect for industrial control systems, automation, and manufacturing environments, this power supply guarantees optimal performance with a 3-year warranty. Buy online now for fast delivery and professional quality.
Order your Mean Well Series SDR-12024 power supply today and ensure your industrial projects are powered with dependable, high-efficiency components.
Frequently Asked Questions
Where can I buy Advantech Automation BBSDR12024?
You can click on the BUY or RFQ button to purchase BBSDR12024 from an authorized Advantech Automation distributor.
How do I troubleshoot issues or seek technical support for part BBSDR12024?
You can download the BBSDR12024 datasheet or visit the Advantech Automation website for support.
Who is the manufacturer of BBSDR12024?
Advantech Automation
