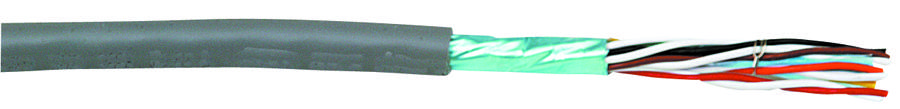

ALPHA WIRE 5495CSL001 Shielded Control Cable
The product is a shielded multi-conductor cable designed for electronic and control applications, featuring tinned copper conductors, PVC insulation, and an aluminum/mylar shield with drain wire. It offers excellent electrical performance with a voltage rating of 300V and low capacitance, suitable for signal transmission in industrial environments. The cable withstands temperature ranges from -35°C to 105°C, with flexible bending radius and mechanical durability, making it ideal for complex wiring setups that require shielding against electromagnetic interference and reliable performance over long runs.
ALPHA WIRE 5495CSL001 Shielded Control Cable Specifications:
- Conductor Material: Tinned Copper
- Conductor Diameter: 24 AWG (7/32 inch)
- Insulation Wall Thickness: 0.010 inches PVC, Semi Rigid
- Shield Type: Alum/Mylar Tape with 25% Overlap
- Shield Direction: Foil Facing In
- Drain Wire: 24 AWG Tinned Copper
- Jacket Thickness: 0.032 inches PVC
- Jacket Color Options: Slate, Black, Yellow, Orange, Blue, Green, Red, Sand Beige, White
- Ripcord: 810 Denier Nylon at one end
- Voltage Rating: 300V
- Temperature Range: -35°C to 105°C
- Bend Radius: 10 times cable diameter
- Maximum Pull Tension: 39 Lbs
- Electrical Capacitance: 25 pF/ft @1 kHz, mutual; 45 pF/ft, ground
- Characteristic Impedance: 769 Ohms
- Inductance: 0.19 uH/ft
- Conductor DCR: 26 Ohms per 1000 ft
- Shield DCR: 15.9 Ohms per 1000 ft
- Product Lengths: 1000 ft, 500 ft, 100 ft spools
- Compliance: UL, CSA, CE, RoHS, REACH, California Proposition 65
- Environmental: Flame retardant, UV resistant, complies with EN 60332-1 and 60332-2
Buy the AlphaWire Series Shielded Cable: 5495C
Purchase your AlphaWire SeriesShielded Control Cable 5495C online today for durable, high-performance wiring solutions designed to withstand harsh industrial environments. Featuring tinned copper conductors, PVC insulation, and an aluminum/mylar shield with a drain wire, this cable provides excellent electrical properties and shielding against electromagnetic interference. Its flexible design, rugged jacket, and compliance with international safety standards make it ideal for control and instrumentation applications requiring high reliability and long-term durability. Get your cable shipped directly to your site and keep your projects on schedule with confidence.
Order your AlphaWire SeriesShielded Cable 5495C today and ensure reliable, interference-free signal transmission for your industrial projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 5495CSL001?
You can click on the BUY or RFQ button to purchase 5495CSL001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 5495CSL001?
You can download the 5495CSL001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 5495CSL001?
ALPHA WIRE
