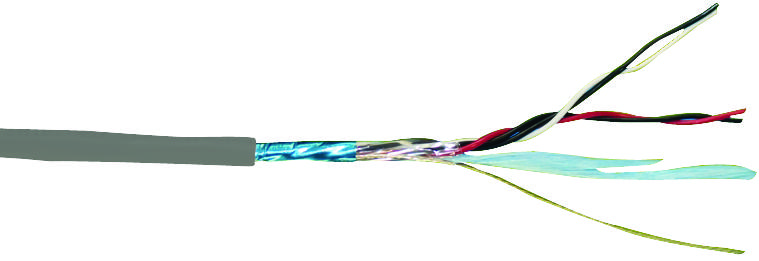

ALPHA WIRE 5905CSL001 Control Cable
This shielded 22 AWG cable features a flexible PVC insulation with a 0.013-inch wall, designed for low-voltage applications up to 300 V. It includes twisted pairs with black-red, black-white, black-green, and black-blue color coding, offering minimal mutual and ground capacitance and characteristic impedance suited for wiring and control systems. It withstands temperatures from -20°C to 80°C and has a bend radius of 10 times the cable diameter. The cable is UL and CSA listed, with RoHS and CE compliance, making it ideal for industrial, automation, and control applications requiring durable and compliant wiring solutions.
ALPHA WIRE 5905CSL001 Control Cable Specifications:
- Conductor: 22 AWG Tinned Copper
- Insulation: PVC, Wall Thickness: 0.013 inches
- Color Code: Black-Red, Black-White, Black-Green, Black-Blue
- Cable Diameter: 0.273 inches (max 0.288 inches)
- Temperature Range: -20°C to 80°C
- Bend Radius: 10x Cable Diameter
- Pull Tension: 46 lbs maximum
- Voltage Rating: 300 V
- Capacitance: 34 pf/ft (mutual), 61 pf/ft (ground)
- Impedance: 75 Ω
- Inductance: 0.2 μH/ft
- Conductor DCR: 17.2 Ω/1000ft, OA Shield DCR: 11.8 Ω/1000ft
- UL Listed, CSA Certified, RoHS, CE, VW-1, FT4
- Environmental Certifications: RoHS 2, REACH, California Proposition 65
Buy the AlphaWire 5905C – Reliable Control Cable for Industrial Applications
Secure your control wiring needs with the AlphaWire 5905C shielded control cable. Designed for durability and compliance, this 22 AWG cable features twisted pairs, PVC insulation, and robust electrical properties. It is UL, CSA, RoHS, and CE certified, suitable for industrial environments demanding high-quality wiring solutions. Perfect for control panels, automation systems, and instrumentation, this cable offers excellent flexibility, temperature resistance, and dependable performance. Purchase online now to ensure fast delivery and reliable connectivity for your critical projects.
Order your AlphaWire 5905C control cable today and ensure robust, compliant wiring for your industrial and automation projects.
Frequently Asked Questions
Where can I buy ALPHA WIRE 5905CSL001?
You can click on the BUY or RFQ button to purchase 5905CSL001 from an authorized ALPHA WIRE distributor.
How do I troubleshoot issues or seek technical support for part 5905CSL001?
You can download the 5905CSL001 datasheet or visit the ALPHA WIRE website for support.
Who is the manufacturer of 5905CSL001?
ALPHA WIRE
