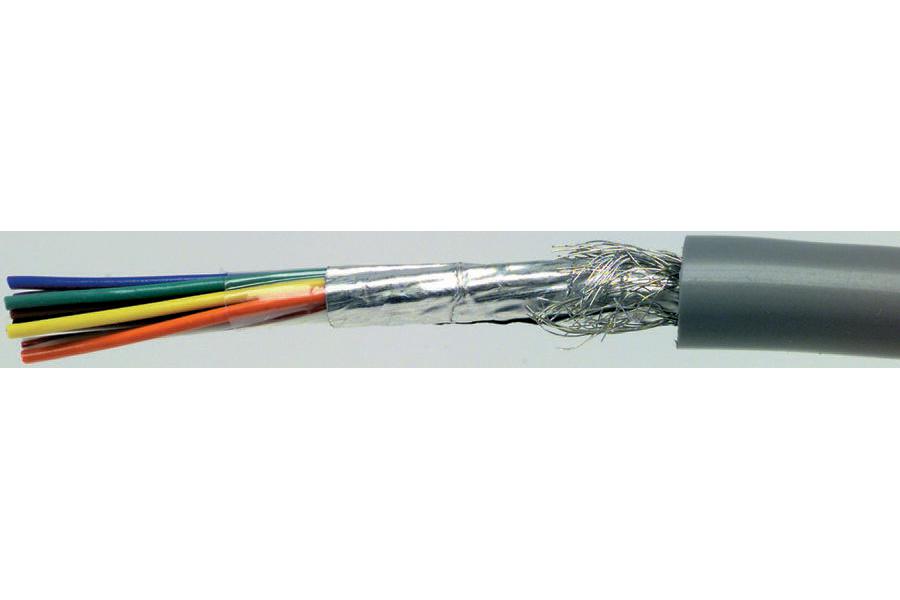

ALPHA WIRE 87604CYBK199 Flexible Torsion Cable
This high-quality flexible torsion cable is designed for reliable performance in dynamic environments. Constructed with 12 AWG bare copper conductors and insulated with 0.027" wall TPES (Hytrel), it features a tinned copper spiral shield with 90% coverage for enhanced EMI protection. The cable has a 0.060" polyurethane outer jacket in black, with PTFE tape separators and print markings indicating 600 volts and RoHS compliance. Suitable for industrial automation, control systems, and equipment requiring flexible, durable wiring solutions.
ALPHA WIRE 87604CYBK199 Flexible Torsion Cable Specifications:
- Conductors: 12 AWG bare copper, 19/.0185, diameter 0.093"
- Insulation: 0.027" wall TPES (Hytrel)
- Jacket: 0.060" wall polyurethane, color black
- Shield: Tinned copper spiral, 90% coverage
- Print: ALPHANUMERIC 1-ONE alternating, inverted, 600 VOLTS FT1 CE ROHS
- Temperature Range: -30°C to +80°C (static); -10°C to +80°C (dynamic)
- Bend Radius: 10X cable diameter static, 15X dynamic
- Voltage Rating: 600V
- Capacitance: 44 pF/ft @1 kHz
- Ground Capacitance: 79 pF/ft @1 kHz
- Inductance: 0.17 pH/ft
- Conductor DCR: 1.62 O/1000ft @20°C
- OA Shield DCR: 2.7 O/1000ft
- Maximum Pull Tension: 213 Lbs
- Environmental Compliance: RoHS 2 and REACH
- Standards: UL AWM Style 10162, CSA AWM I/II AB, 80°C / 600V, VW-1
Buy the AlphaWire Series Flex Torsion Cable: 87604CY
Order AlphaWire flexible torsion cable 87604CY online now to ensure your industrial or automation project benefits from high durability, excellent EMI Shielding, and RoHS compliance. Designed with 12 AWG copper conductors, TPU outer jacket, and spiral shield, this cable provides reliable performance under dynamic conditions. Its 600V rating and UL, CSA certifications make it ideal for control panels and automation systems. Purchase today to enjoy fast shipping, competitive pricing, and the assurance of premium quality components designed for long-lasting service.
Get AlphaWire 87604CY today—built for flexibility, durability, and reliable performance in demanding industrial environments.
