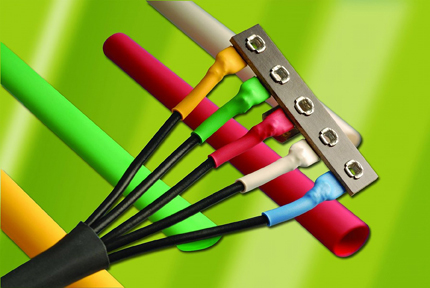

ALPHA WIRE FIT2211INWHITE5X4 Heat Shrink Tubing
The ALPHA WIRE FIT2211IN-WHITE-5X4 is a heat shrinkable polyolefin tubing providing excellent electrical insulation and mechanical protection for wires and cables. Constructed from cross-linked polyolefin, it offers a 2:1 shrink ratio, ensuring a tight and secure fit. This tubing is commonly used in automotive, industrial, and electronics applications where reliable insulation and protection from harsh environments are required. It meets UL 224 and CSA 198 standards and is RoHS compliant, demonstrating a commitment to environmental responsibility. Its properties include a wide temperature range (-55°C to 135°C), good tensile strength, and resistance to various chemicals and fluids.
ALPHA WIRE FIT2211INWHITE5X4 Heat Shrink Tubing Specifications:
- Tubing Type: Heat Shrinkable Tubing
- Tubing Material: Cross Linked Polyolefin
- Minimum Supplied ID (In): 1.000
- Maximum Recovered ID (In): 0.500
- Nominal Recovered Wall Thickness (In): 0.035
- Color(s): BLACK, WHITE, CLEAR, RED, YELLOW, BLUE, GREEN
- UL Standard: 224 (Except Clear) 600V
- CSA Standard: 198 (Except Clear) 600V
- AMS DTL: 23053/5 Class 1 (Except Clear)
- AMS DTL Class 2: 23053/5 Class 2 (Clear Only)
- EU Directive: 2011/65/EU (RoHS2) Compliant
- REACH Regulation: Does not contain SVHC in excess of 0.1% mass
- California Proposition 65: Compliant
- Temperature Range: -55 to 135°C
- Shrink Ratio: Approximately 2:1
- Full Recovery Temperature: 121°C
- Minimum Shrink Temperature: 90°C
- Tensile Strength: 1500psi, Min (ASTM D638)
- Elongation: 200%, Min (ASTM D638)
- Low Temperature Flex: no cracking (AMS-DTL-23053)
- Heat Shock: no cracking (AMS-DTL-23053)
- Secant Modulus: 2.5x104psi, Min (ASTM D882)
- Longitudinal Change: +/-5% (AMS-DTL-23053)
- Specific Gravity (Colors): 1.35, Max (ASTM D792)
- Specific Gravity (Clear): 1.00, Max
- Shelf Life: 5 Years @ 18 to 35°C
- Dielectric Strength: 500 V/mil, Min (ASTM D876)
- Volume Resistivity: 1x1014ohm-cm, Min (ASTM D876)
- Water Absorption: 0.50%, Max (ASTM D570)
- Corrosion: no corrosion (AMS-DTL-23053)
- Fluid Resistance: 1000 PSI, Min (AMS-DTL-23053)
- Fungus Resistance: Pass (AMS-DTL-23053)
- Vacuum Outgassing - CVCM: 0.10%, Max (ASTM E595)
- Halogen Free: No
- Lead Free: Yes
