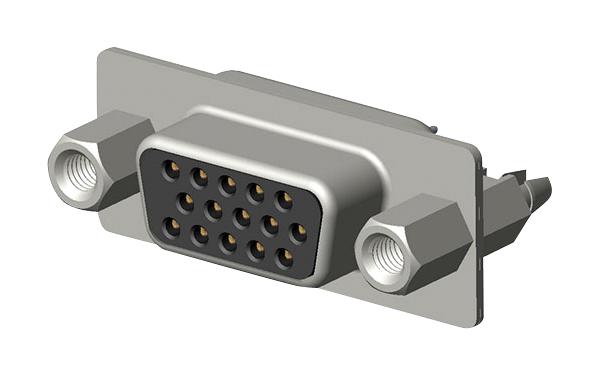

AMPHENOL COMMUNICATIONS SOLUTIONS 10090929S156VLF High Density D-Subminiature Connectors
High density D-Subminiature connectors provide reliable, compact interconnection solutions suitable for data, communication, industrial, and medical applications. These connectors are RoHS compliant, feature high mating cycle durability, and are available in various socket and pin configurations including straight and right-angle options. Made from high-quality thermoplastic insulators and copper alloy contacts, they support rated currents up to 2.5A and voltages of 250V. Ideal for high-speed interconnects with robust mechanical and electrical performance, ensuring long-term reliability in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS 10090929S156VLF High Density D-Subminiature Connectors Specifications:
- Insulator Material: Glass Filled Thermoplastic (UL94V-0)
- Contact Material: Copper alloy
- Rated Current: 2.5A
- Rated Voltage: 250V
- Contact Resistance: 25mΩ max. initial, 40mΩ max. after mating
- Insulation Resistance: 5000MΩ min. at 500V DC
- Dielectric Strength: 750V RMS
- Operating Temperature Range: -55°C to +105°C
- Mating Cycles: 200 (standard), 500 (high durability)
- Shell Material: SPCC steel
- Dimensions vary per configuration, typically length approximately 30-70 mm, width 16-38 mm, height 16-57 mm
Buy the Fci Series High Density D-Subminiature Connectors: 10090929S156VLF
Enhance your electronic systems with our high density D-Subminiature connectors, offering robust electrical performance and long-term durability. Perfect for data, server, industrial, and medical applications, these RoHS compliant connectors support high mating cycles and are available in various configurations, including straight and right-angle options. Made from high-quality thermoplastic insulators and copper alloy contacts, they ensure reliable connectivity in demanding environments. Order online today for fast delivery and superior interconnect performance in your projects.
Buy Fci high density D-Subminiature connectors now and experience unmatched reliability and high-speed performance for your industrial and communication needs.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10090929S156VLF?
You can click on the BUY or RFQ button to purchase 10090929S156VLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10090929S156VLF?
You can download the 10090929S156VLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10090929S156VLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
