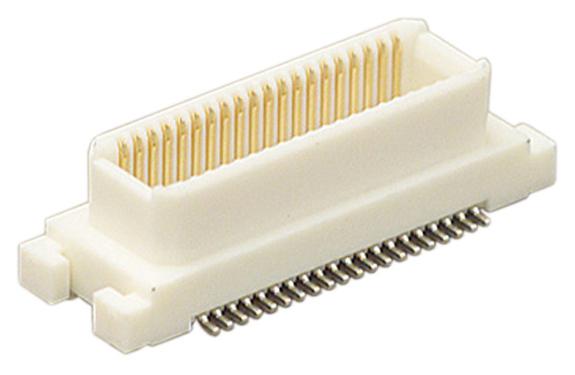

AMPHENOL COMMUNICATIONS SOLUTIONS 61083044402LF 0.8mm Mezzanine Connector
Amphenol’s BergStak 0.8mm mezzanine connector provides a flexible solution for high-speed, high-density parallel board-to-board connections. With stack heights ranging from 5mm to 20mm and positions from 40 to 200, this connector accommodates a wide range of applications. Key features include a housing and terminal profile that supports up to 12Gb/s, scoop-proof housings, multiple plating options, and PCB locator pegs for ease of assembly. It is ideal for applications such as IP phones, routers, servers, industrial equipment, and test and measurement systems. The connector is RoHS compliant and available in various packaging options, including tape and reel and tubes.
AMPHENOL COMMUNICATIONS SOLUTIONS 61083044402LF 0.8mm Mezzanine Connector Specifications:
- Housing: Glass filled LCP, UL94V-0
- Contact Base Metal: Copper Alloy
- Receptacle: Copper Alloy, High Spring
- Plug: Brass
- Contact Area Finish: Gold or Gold flash over Palladium-nickel (GXT) over Nickel
- Solder Area Finish: Matte pure Tin over Nickel
- Temperature Range: -40°C to +125°C
- High Temperature Life: 105°C ± 5°C for 1000 hours
- Humidity: 90-95% relative humidity for 96 hours
- Mixed Flowing Gas Class: 2a (30 GXT)
- Durability: 100 mating cycles
- Mating Force: 0.9N max./contact
- Unmating Force: 0.1N min./contact
- Insulation Resistance: 1000M Ω min. (Initial), 100M Ω min. (After Test)
- Current Rating: 0.8A/contact
- Contact Resistance: 30m Ω max. (Initial), 50m Ω max. (After Test)
- Voltage Rating: 100VAC
- Impedance Range: 81 to 108 Ω @ 50 ps edge (10-90%)
- Return Loss: < 10dB up to 5GHz
- Insertion Loss: < 1.5dB up to 5GHz
- NEXT: ≤ 4.0% for a 50 ps edge (10-90%)
- FEXT: ≤ 2.4% for a 50 ps edge (10-90%)
- Product Specification: GS-12-547
- Test Report: DGS-29-010
- Stack Height Options: 5mm to 20mm in 1mm increments
- Position Options: 40 to 200 in 20 position increments
- Contact Pitch: 0.8mm
