AMPHENOL COMMUNICATIONS SOLUTIONS T816140A1R101CEU Latch Header
The T816 series latch header is a 2.54mm pitch connector designed for reliable PCB connections in electronic assemblies. Made from durable PBT+25%G.F insulator with UL 94V-0 rating, it features brass contacts that are gold or tin plated over 50u" nickel. Suitable for high-reliability applications, it offers insulation resistance of 1000 MQ and withstands dielectric voltage of 500 VAC RMS for one minute. Rated for 3.0A current and 250V AC/DC, operating from -40°C to +105°C, with multiple latch and termination options for flexible configurations.
AMPHENOL COMMUNICATIONS SOLUTIONS T816140A1R101CEU Latch Header Specifications:
- Pitch: 2.54mm
- Housing Material: PBT+25%G.F, UL 94V-0
- Contact Material: Brass, Gold or Tin Plated over 50u" Ni
- Number of Positions: 6, 8, 10, 14, 16, 18, 20, 24, 26, 64
- PINS: A, B, C dimensions vary with position count, e.g., 6 positions: 5.08mm, 8 positions: 7.62mm, 10 positions: 10.16mm
- Contact Resistance: Max 20 mΩ at 1A
- Insulation Resistance: Min 1000 MQ at 500V/DC
- Dielectric Voltage: 500 VAC RMS for 1 minute
- Current Rating: Max 3.0A
- Voltage Rating: 250V AC/DC
- Operating Temperature: -40°C to +105°C
- RoHS Compliant
- Termination: THT, straight or right-angled latch options
- Housing Color: Grey or Black
- Plating Options: Gold flash over 50u" Ni, or full tin over 50u" Ni

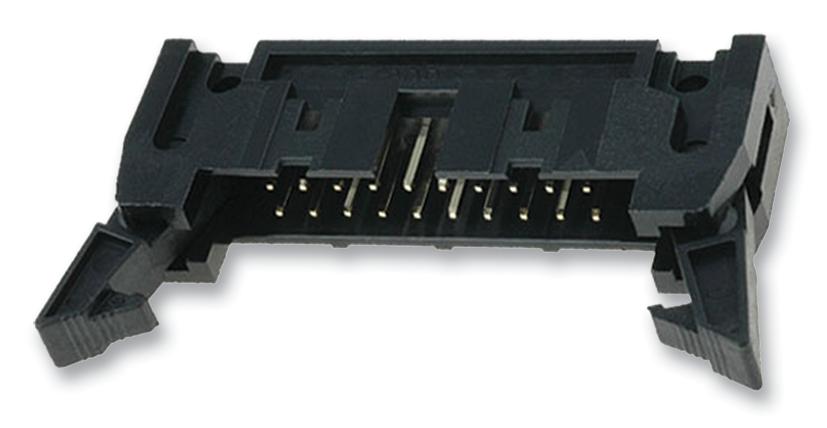

Buy the Berg Series 7816 Connector: T816 Modules
Order the Berg Series latch header T816 today to ensure reliable PCB connections with high current capacity, excellent temperature tolerance, and diverse latch options for your electronic projects. This robust connector features gold or tin plating for optimal conductivity and corrosion resistance. Its versatile design accommodates multiple configurations, including straight or right-angled terminations, making it suitable for a wide range of industrial, automation, and electronic assembly applications. Purchase online now for fast delivery and consistent performance.
Get Berg Series 7816 T816 latch header today—designed for secure PCB connections with high current capacity and excellent environmental resistance.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS T816140A1R101CEU?
You can click on the BUY or RFQ button to purchase T816140A1R101CEU from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part T816140A1R101CEU?
You can download the T816140A1R101CEU datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of T816140A1R101CEU?
AMPHENOL COMMUNICATIONS SOLUTIONS
