AMPHENOL COMMUNICATIONS SOLUTIONS 10143250102LF Power Connector
The Minitek Pwr 5.7 connector system by Amphenol offers a high current rating of up to 23A per contact, ideal for power applications. Its design features polarized mating to prevent mis-mating, a scoop-proof housing to protect terminals, and wide operating temperature range from -40°C to 105°C. Constructed with high-conductivity copper and UL94V-0 rated nylon 66 and LCP housing, it supports wire gauge from 16 to 1/0 AWG. This reliable, environmentally resistant connector is widely used in industrial, telecom, and household appliances for secure and durable power connections.
AMPHENOL COMMUNICATIONS SOLUTIONS 10143250102LF Power Connector Specifications:
- Current Rating: Up to 23A per contact
- Voltage Rating: 600V AC/DC
- Operating Temperature: -40°C to 105°C
- Material: High-Conductivity Copper, Nylon 66, LCP UL94V-0
- Wire Range: 16-1/0 AWG
- Mating Force: Tin plated 6.8N, Gold plated 6.0N
- Unmating Force: Tin plated 6.5N, Gold plated 5.6N
- Durability: Tin plated 25 cycles, Gold plated 200 cycles
- Insulation Resistance: ≥1000MQ
- Contact Resistance: Tin plated 10mΩ, Gold plated 5mΩ
- Flammability Rating: UL94V-0
- Environmental Resistance: Salt spray and gas corrosion resistant
- Certification: UL, TUV approved
- Temperature Range: -40°C to 105°C

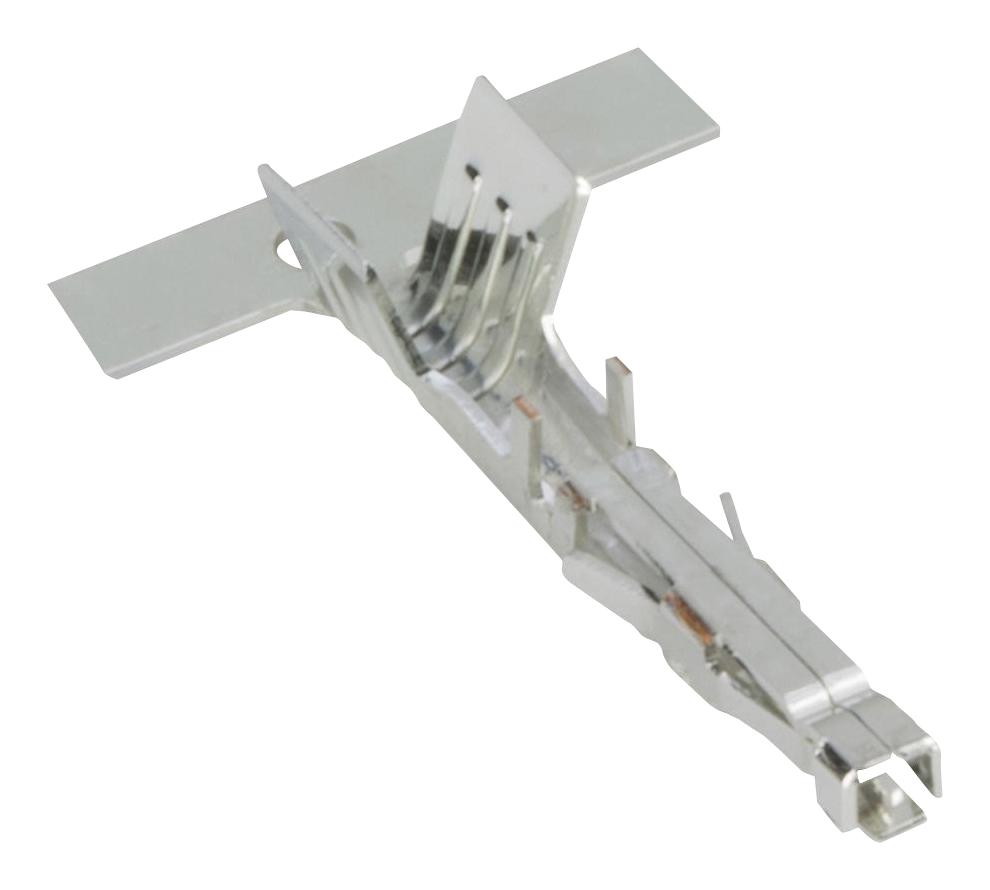

Buy the Amphenol 101432501 - Reliable Power Connector for Industrial Applications
Order the Amphenol 101432501 Power Connector online today to ensure a secure, durable, and high-current connection for industrial, telecom, and household equipment. This high-quality connector features polarized housing, scoop-proof design, and robust construction with high-conductivity copper and flame-retardant materials. Rated up to 23A at 600V and operating efficiently in temperatures from -40°C to 105°C, it offers excellent environmental resistance against corrosion and mechanical wear. Perfect for power distribution in a variety of demanding applications, purchase now for reliable performance and easy installation.
Buy Amphenol 101432501 now and experience unmatched reliability and high current performance for your power connectivity needs.
