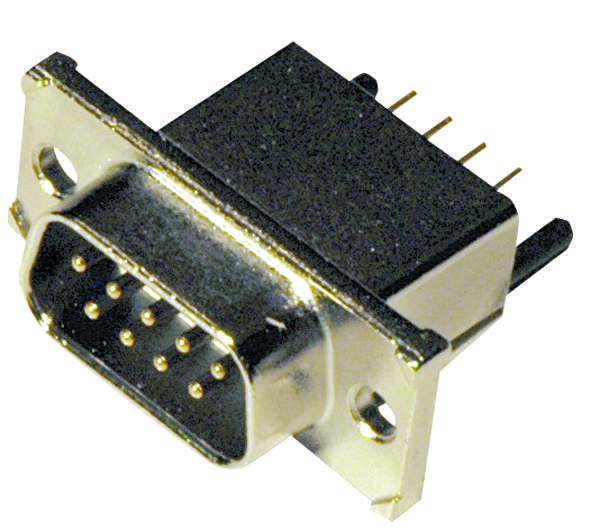

AMPHENOL COMMUNICATIONS SOLUTIONS MDBE09PE860 Rugged D-Sub Connector
The MDB Rugged D-sub Connector series by Amphenol offers durable and high-performance connectors designed for harsh environments. Featuring IP67 protection against water immersion and dust ingress, these connectors include 9 and 26 position options with vertical PCB tails, right-angle, and solder cup terminations. Constructed with robust die-cast zinc shells, gold-plated copper alloy contacts, and high-temperature resistant plastics, they are ideal for outdoor equipment, industrial automation, and agricultural applications, providing reliable connectivity in demanding conditions while supporting up to 5A per contact and 200V DC capacity.
AMPHENOL COMMUNICATIONS SOLUTIONS MDBE09PE860 Rugged D-Sub Connector Specifications:
- Maximum current: 5A per contact
- Maximum voltage: 200V DC, 125V AC
- Contact resistance: 15 mQ max
- Insulation Resistance: 5 GQ at 200V DC for 60 seconds
- DWV: 500V minimum DC for 60 seconds
- Durability: 500 mating cycles
- Shell: Die cast Zinc alloy, nickel plated
- Housing: Glass-reinforced thermoplastic, UL94V-0 rated, black
- Contacts: Copper alloy, gold over nickel plating, minimum 30 n” gold
- Temperature range: -40°C to +105°C
- Ingress protection: IP67, resistant to water immersion and dust
Buy the Buy Amphenol Rugged D-Sub Connector Part Number MDBE09PE860 Online
Purchase the Amphenol Rugged D-Sub Connector today for robust and reliable performance in demanding environments. Designed with IP67 sealing, high-quality gold-plated contacts, and corrosion-resistant materials, this connector ensures durability and secure connections in outdoor, industrial, and agricultural applications. Available in both 9 and 26 position configurations with vertical PCB tails, right-angle, and solder cup terminations, it supports up to 5A current and 200V voltage. Trust Amphenol’s quality for your critical connectivity needs and get yours online now.
Get Amphenol MDBE09PE860 today—built for harsh environments with IP67 sealed protection and high durability for dependable connections.
