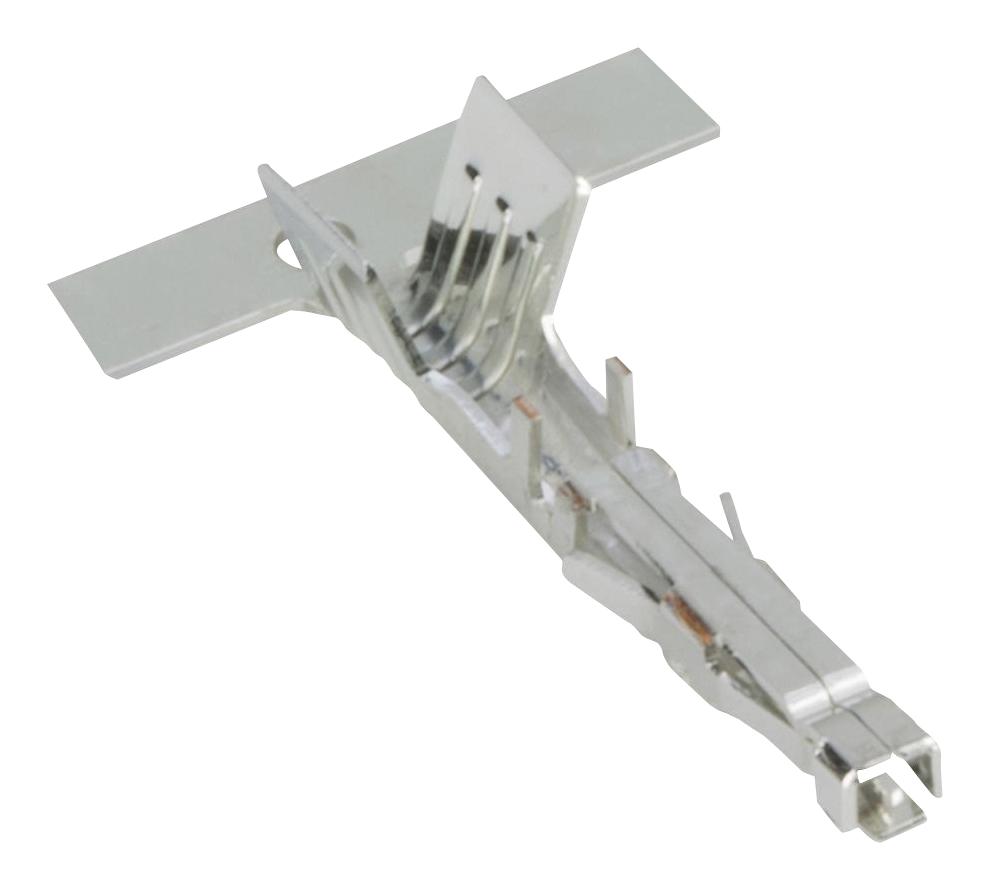

AMPHENOL COMMUNICATIONS SOLUTIONS 10143250111LF Power Connector
The Minitek Pwr 5.7 Connector System offers a high-current, reliable power solution for wire-to-board applications. Designed to handle up to 23A per contact, it features polarized mating geometry, scoop-proof housing, and a wide temperature range from -40°C to 105°C. Manufactured from UL94V-0 flammability rated nylon and high-conductivity copper, this connector ensures durability, environmental resistance, and compliance with international safety standards. Ideal for diverse industries such as telecommunications, home appliances, industrial, and networking, it guarantees secure connection and environmental protection in demanding conditions.
AMPHENOL COMMUNICATIONS SOLUTIONS 10143250111LF Power Connector Specifications:
- Current Rating: Up to 23A per contact
- Voltage Rating: 600V AC/DC
- Contact Material: High-Conductivity Copper with optional Tin and Gold plating
- Housing Material: Nylon 66 & LCP, UL94V-0 flammability rated
- Operating Temperature: -40°C to 105°C
- Mating Force: Tin plated 6.8N, Gold plated 6.0N per circuit max.
- Unmating Force: Tin plated 6.5N, Gold plated 5.6N per circuit max.
- Durability: Tin plated 25 cycles, Gold plated 200 cycles
- Insulation Resistance: min 1000MQ
- Low Level Contact Resistance: Max 2mΩ
- Crimping Terminal: High-Conductivity Copper with optional Tin and Gold plating
- Packaging: Tray for PCB Header, Bag for Housing, Reel for Crimping Terminal
- Certifications: UL approval: 66906, TUV approval: B171234414032
Buy the Amphenol Series Pwr 5.7 Power Connector: 10143250111LF
Purchase the Amphenol Pwr 5.7 connector online today and benefit from a highly reliable, high-current solution suitable for wire-to-board applications. With a maximum current rating of 23A per contact, it features polarized mating, scoop-proof housing, and wide operating temperature tolerance. Constructed from UL94V-0 nylon and high-conductivity copper with optional tin and gold plating, it ensures durability and environmental resistance. Ideal for various industrial, telecom, and household appliances, this connector guarantees secure, safe, and efficient power connections in demanding environments.
Buy Amphenol Pwr 5.7 connector now and experience unmatched reliability and high current performance in power applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 10143250111LF?
You can click on the BUY or RFQ button to purchase 10143250111LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 10143250111LF?
You can download the 10143250111LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 10143250111LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
