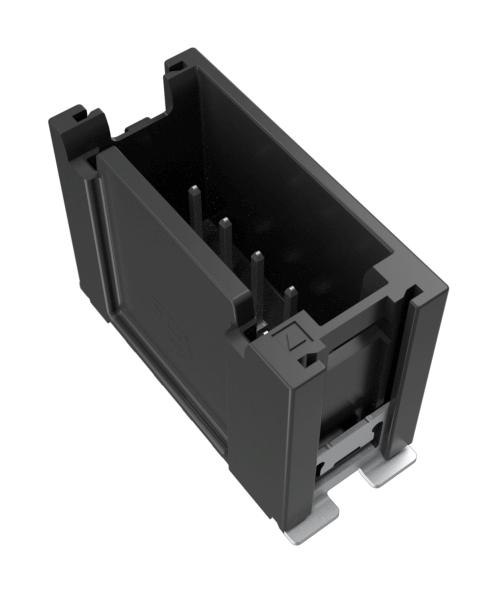

AMPHENOL COMMUNICATIONS SOLUTIONS 10143578106KLF Crimp-to-Wire Connector
The Minitek MicroSpace™ crimp-to-wire connector platform supports LV214 Severity-2 standards with pitches of 1.80mm, 1.50mm, and 1.27mm. This compact, robust, and versatile system features single and double row configurations with top and side latch options. It incorporates low insertion force terminals, keying for mismatch prevention, terminal and connector positioning assurance (TPA and CPA), and proven design controls. Designed for harsh environments, it uses existing crimp sections, automated tooling up to 22 AWG, and provides vibration resistance with a 4N normal force and over 75N locking strength. Suitable for demanding applications requiring reliable locking, proper mating, and high current capacity up to 4A per contact.
AMPHENOL COMMUNICATIONS SOLUTIONS 10143578106KLF Crimp-to-Wire Connector Specifications:
- Pitch options: 1.27mm, 1.50mm, 1.80mm
- Material: High temperature thermoplastic (UL94V-0), high current alloy contacts
- Plating: Tin, Gold, or GXT
- Current Rating: Up to 4A per contact
- Voltage Rating: 48V
- Contact Resistance: <30mΩ
- Insulation Resistance: >100MΩ
- Dielectric Withstanding Voltage: 500VAC
- Operating Temperature Range: -40°C to +130°C
- Terminal Insertion Force: <3N, low insertion option available upon request
- Terminal Retention Force: >50N
- Durability: 20 mating cycles for Sn, 100 for Au/GXT
- Environmental Resistance: Suitable for harsh environments, vibration resistant
- Dimensions: Supports pitches of 1.27mm, 1.50mm, 1.80mm; configurations vary in number of positions
- Assembly: Reels, tape & reel packaging for terminals, bag for housings
Buy the Buy Amphenol ICC Minitek MicroSpace Connector Part Number 10143578106KLF Online
Purchase the versatile and durable Minitek MicroSpace™ crimp-to-wire connector online today. This high-performance system supports LV214 Severity-2 standards, featuring keying to prevent mismatching, TPA and CPA for proper mating, and a current capacity of 4A per contact. Its compact design includes low insertion force terminals, making installation easier without special tools. Suitable for demanding environments, it offers proven durability, vibration resistance, and reliable locking forces over 75N, ensuring your projects benefit from dependable connectivity. Shop now for fast delivery and quality assurance.
Order your Amphenol ICC Minitek MicroSpace 10143578106KLF connector today and ensure reliable, vibration-resistant connections for harsh environment applications.
