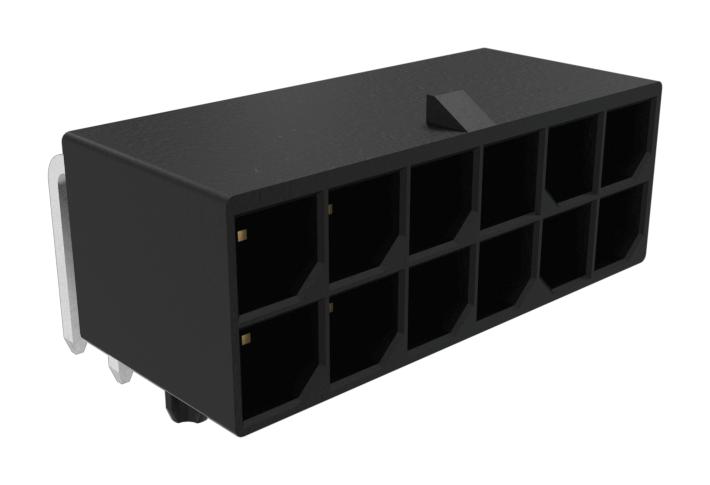

AMPHENOL COMMUNICATIONS SOLUTIONS 1014699712200LF Power Connector System
The AMPHENOL Minitek Pwr 5.70 connector system is designed for power applications requiring high current capacity and reliability. This versatile system supports wire-to-board connections and offers features like polarized mating geometry to prevent mis-mating, a wide operating temperature range, and scoop-proof housing to protect terminals. It is widely used in applications such as 1U rack boxes, air conditioners, microwave ovens, blade servers, and medical equipment, providing a robust and secure power connection solution. The system is available in various configurations and is designed to meet stringent environmental and safety standards.
AMPHENOL COMMUNICATIONS SOLUTIONS 1014699712200LF Power Connector System Specifications:
- Current Rating: Up to 23A/contact
- Operating Temperature Range: -40°C to 105°C (Tin Plated), -40°C to 120°C (Gold Plated)
- Voltage Rating: 600V AC (RMS)/DC
- Contact Resistance: Tin plated: 10m Ω, Gold plating: 5m Ω max.
- Mating Force: 6.8N (Tin plated), 6.0N (Gold plated) per circuit max.
- Unmating Force: 6.5N (Tin plated), 5.6N (Gold plated) per circuit max.
- Durability: 25 cycles (Tin plated), 200 cycles (Gold plated)
- Low Level Contact Resistance: 2m Ω max. (Initial)
- Insulation Resistance: 1000M Ω min.
- Material (Board Connector): High-conductivity copper with optional tin and gold plating
- Material (Header Housing): LCP, black & natural, UL 94V-0
- Material (Receptacle Housing): Nylon 66, black & natural, UL 94V-0 & UL 94V-2
- Material (Crimping Terminal): High-conductivity copper with optional tin and gold plating
- Approvals: UL E66906, TUV B171234414032
- Flammability Rating: UL94V-0
- Halogen-free: Yes
- Packaging (PCB Header): Tray/tape and reel
- Packaging (Receptacle Housing): Bag
- Packaging (Crimping Terminal): Reel
Buy the 10146997-12200LF AMPHENOL COMMUNICATIONS SOLUTIONS Power Connector System | myMectronic
Securely purchase the AMPHENOL 10146997-12200LF connector system and ensure reliable power connections for your industrial applications.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 1014699712200LF?
You can click on the BUY or RFQ button to purchase 1014699712200LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 1014699712200LF?
You can download the 1014699712200LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 1014699712200LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
