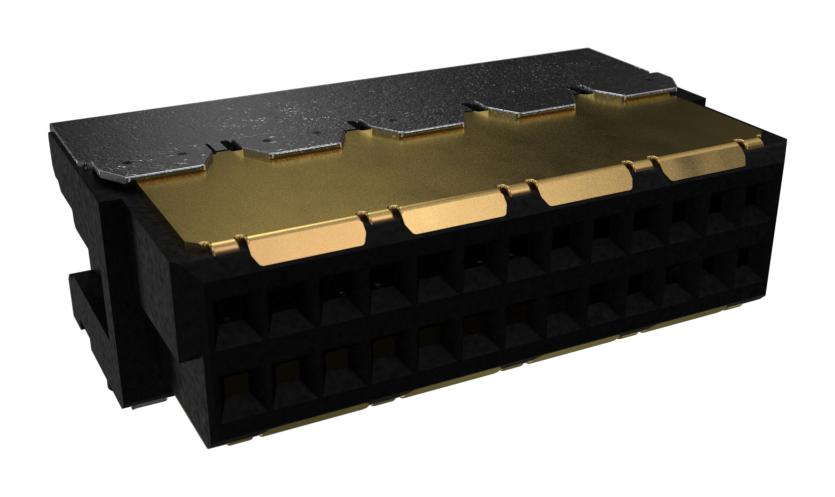

AMPHENOL COMMUNICATIONS SOLUTIONS 101470732600RLF MicroSpeed Board-to-Board Connector
The Amphenol MicroSpeed connector family offers a 1.00mm pitch solution for high-speed data applications, supporting rates up to 25Gbps. Its shielded design provides excellent electromagnetic compatibility, crucial for industrial automation, computing, medical technology, and telecommunications. The connector's poka-yoke polarization prevents mismating, enhancing reliability, while the dual-beam contact design ensures robust electrical performance. It is RoHS compliant and available in various configurations including right-angle and vertical options, catering to diverse application needs. It is licensed as a second source to ERNI, allowing for direct selection of mating counterparts.
AMPHENOL COMMUNICATIONS SOLUTIONS 101470732600RLF MicroSpeed Board-to-Board Connector Specifications:
- Supports: high-speed performance up to 25Gb/s
- EMC shielding: reduces coupling inductance
- Contact design: dual-beam contact
- Mating feature: blind-mating
- PCB orientation: supports multiple
- Housing material: High temperature thermoplastic LCP, black (UL94V-0)
- Terminal & Shield Base Material: Copper alloy
- Plating (Mating Area): Gold and PdNi over nickel plating with lubrication
- Plating (Termination Area): Tin plating over nickel
- Current Rating: 1A per contact, 10A per shield
- Voltage Rating: 500V(AC RMS, 60Hz)
- LLCR: 50m Ω max.
- Insulation Resistance: 1x1010 Ω min.
- Data Rate: up to 25Gbps
- Multiline Crosstalk: < 0.5% at 50ps (10-90%)
- Differential Impedance: 100 Ω
- Single Ended Impedance: 50 Ω
- Durability: 500 cycles
- Mating Force: 1N max. per contact
- Un-mating Force: 1N max. per contact
- Gauge Retention Force: 0.1N min. per contact
- Coplanarity: 0.1mm max. at termination area
- Operating Temperature: -55°C ~ 125°C
- Industrial Atmosphere Durability: 10 days
- Vibration Sinusoidal: 20g
- Shock Half Sine: 50g
- UL Listing: E66906
- Packaging: Tape & reel
Buy the 10147073-2600RLF AMPHENOL COMMUNICATIONS SOLUTIONS MicroSpeed Board-to-Board Connector | myMectronic
Purchase the Amphenol MicroSpeed connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 101470732600RLF?
You can click on the BUY or RFQ button to purchase 101470732600RLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 101470732600RLF?
You can download the 101470732600RLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 101470732600RLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
