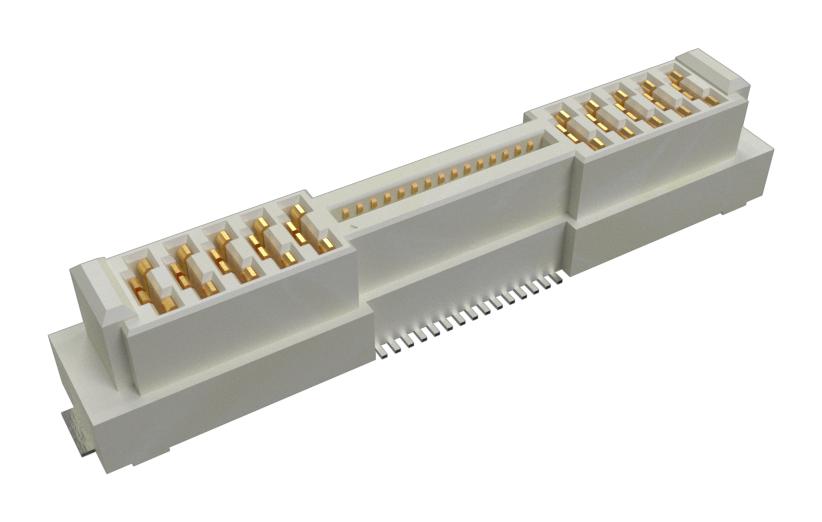

AMPHENOL COMMUNICATIONS SOLUTIONS 10159559A30221RLF board-to-board connector
The ComboStak and PowerStak board-to-board connectors offer a compact, hybrid (signal and power) solution with high current capacity up to 20A per power blade and signal speeds up to 12Gb/s. Designed for reliable blind mating, these connectors feature self-alignment, a 4-point contact design, and support stack heights from 5mm to 20mm. They support 2 to 10 power blades on a 2.00mm pitch and 6 to 140 signal pins on 0.8mm pitch, making them ideal for automotive, industrial, networking, and datacom applications. Their robust construction includes UL94-VO LCP housing, copper alloy contacts plated with gold or GXT, and meet environmental standards including RoHS and halogen-free compliance.
AMPHENOL COMMUNICATIONS SOLUTIONS 10159559A30221RLF board-to-board connector Specifications:
- Housing: LCP UL94-VO
- Power contact: Copper alloy with nickel under plate
- Signal contact: Copper alloy with gold or GXT plating
- Current Rating: 20A max. per power contact, 0.8A per signal
- Voltage Rating: 100V DC
- Electrical Resistance: Signal contact initial 30mΩ max., after test 50mΩ max.; Power contact initial 2mΩ max.
- Insulation Resistance: ≥1000MΩ
- Operating Temperature Range: -40°C to +125°C
- Durability: 200 mating cycles
- Insertion Force: max 6N per power contact, 0.9N per signal contact
- Withdrawal Force: min 0.8N per power contact, 0.1N per signal contact
- Shock and Vibration: USCAR-2 V2 compliant
- Stack Heights: 5mm to 20mm in 1mm increments
- Supports up to 20A per power blade, 12Gb/s signal speed
- RoHS, Halogen-free, Lead-Free
