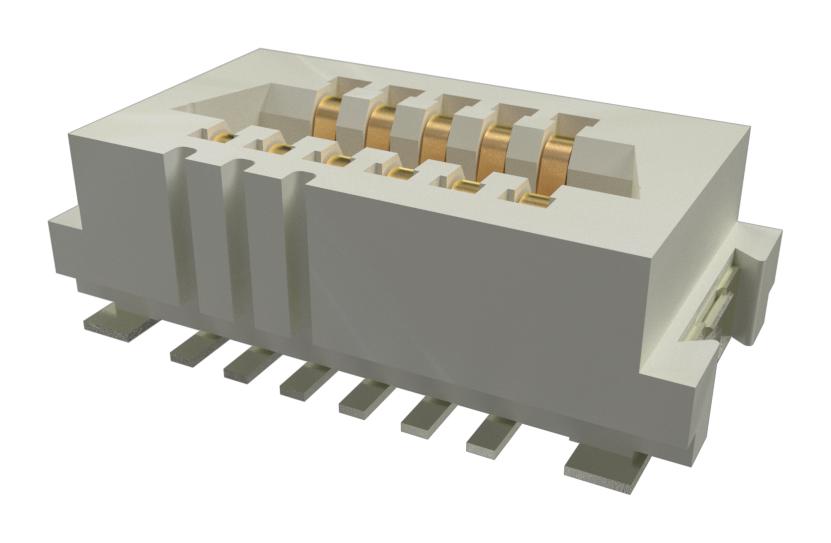

AMPHENOL COMMUNICATIONS SOLUTIONS 101625813134111LF Board-to-Board Connector
The Conan Lite 1.00mm connector offers a reliable, high-speed board-to-board connection solution suitable for various electronic applications. Crafted with a high temperature thermoplastic housing and gold-flashed copper alloy contacts, it supports data transmission rates up to 8Gb/s, with a current rating of 1.0A. The connector features polarized housings, audible mating confirmation, and robust metal hold-downs for secure connections. It withstands operating temperatures from -55°C to +125°C and is compatible with auto reflow processes, making it ideal for LED lighting, control units, and server applications.
AMPHENOL COMMUNICATIONS SOLUTIONS 101625813134111LF Board-to-Board Connector Specifications:
- Housing: High temperature thermoplastic LCP
- Terminal Base Material: Copper alloy
- Plating: Gold flash on contact area
- Current Rating: 1.0A continuous
- Contact Resistance: 30mΩ max.
- Withstanding Voltage: 500V AC RMS 60Hz
- Durability: 30 cycles
- Mating Force: 125g per contact max.
- Un-mating Force: 35g per contact min.
- Operating Temperature Range: -55°C to +125°C
Buy the Amphenol Series Conan Lite 1.00mm Connector: 101625813134111LF
Get the Amphenol Series Conan Lite 1.00mm connector online today to enjoy a high-speed, reliable connection solution for your electronic or industrial applications. Designed with a thermoplastic housing and gold-plated contacts, this connector supports data transfer speeds up to 8Gb/s, making it perfect for LED lighting, control units, and servers. Its polarized, protected housing ensures correct mating and a secure connection with a maximum current of 1.0A. Compatible with auto reflow and operating from -55°C to +125°C, it guarantees durability and performance.
Order your Amphenol Series Conan Lite 1.00mm connector today and ensure reliable, high-speed connections for your electronic projects.
