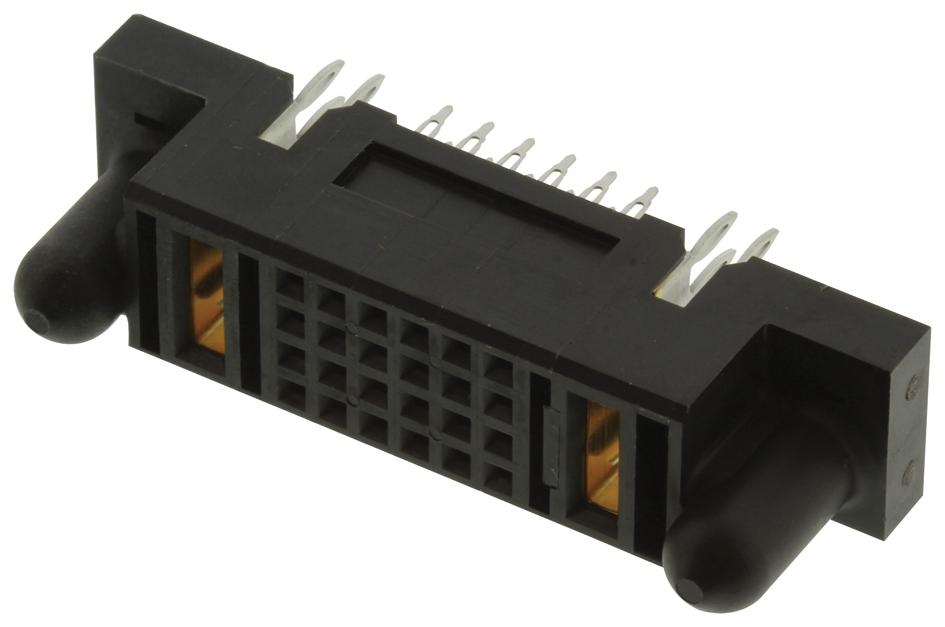

AMPHENOL COMMUNICATIONS SOLUTIONS 51666001LF Power Distribution Connector
The AMPHENOL PwrBlade connector system is a versatile solution for power distribution and signal control. It combines power and signal contacts in a single connector, offering flexibility for various applications including servers, storage enclosures, and communications equipment. The system supports different connection types and can be customized to meet specific application requirements, making it a robust and adaptable choice for power management.
AMPHENOL COMMUNICATIONS SOLUTIONS 51666001LF Power Distribution Connector Specifications:
- Housings: high-temperature thermoplastic (UL94V-0)
- Contact base material Power: high-conductivity copper alloy
- Contact base material Signal: copper alloy
- Contact finish separable interface: 30μin. performance-based plating over nickel
- Board termination area: Matte tin over nickel
- Insulation resistance Power contact: 10,000MΩ
- Insulation resistance Signal contact: 500MΩ
- Withstanding voltage Power contact: 2,500V DC
- Withstanding voltage Signal contact: 1,000V DC
- Current rating single power contact: 48 Amps
- Current rating multiple power contacts: 30 Amps
- Current rating UL test guidelines: 60 Amps per contact
- Power contact resistance: ≤0.7 mΩ
- Mating force Power contact: 25 ounces
- Mating force Signal contact: 3.5 ounces
Buy the 51666-001LF AMPHENOL COMMUNICATIONS SOLUTIONS Power Distribution Connector | myMectronic
Securely purchase the 51666-001LF connector online and ensure reliable power distribution for your critical applications.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 51666001LF?
You can click on the BUY or RFQ button to purchase 51666001LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 51666001LF?
You can download the 51666001LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 51666001LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
