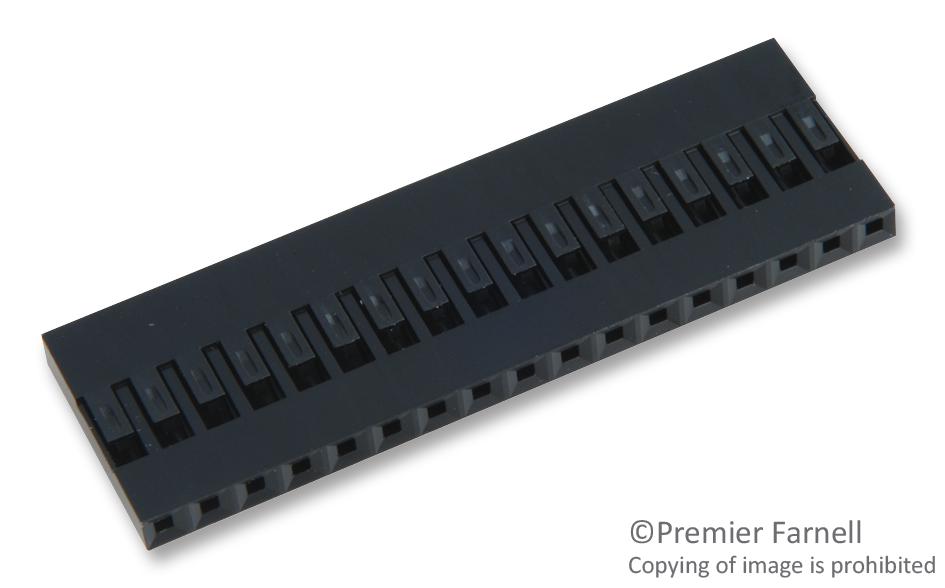

AMPHENOL COMMUNICATIONS SOLUTIONS 65039020LF Wire-to-Board Connector
The Mini-PV 65039 series crimp-to-wire connector system is designed for reliable connection of discrete wires to printed circuit boards. It features high-reliability dual-metal receptacle terminals that mate with industry-standard 0.025-inch (0.635mm) square posts. The system offers various options for containment, protection, and guidance at both the wire and printed circuit board interfaces. Wire-side PV® receptacle terminals can be terminated to individual wires or inserted into multi-circuit MINI-LATCH connector housings with optional polarizing keys to ensure correct mating. The printed circuit side employs shrouded headers with integral friction features that grip the sides of MINI-LATCH housings to prevent disconnection. The unique dual-metal PV® contacts maintain consistent contact pressure through up to 1,000 mating cycles, with a beryllium copper spring providing high normal force and a brass contact body ensuring gas-tight crimps. Additional features include side walls that engage with MINI-LATCH housings for enhanced retention, polarization keyways to prevent mis-mating, and options for single or double-row configurations. The two-wall header design offers mechanical stability and cost efficiency. This connector system is suitable for applications such as sensing and instrumentation, medical devices, avionics, defense and aerospace, communications, automotive electronics, consumer devices, and industrial equipment.
AMPHENOL COMMUNICATIONS SOLUTIONS 65039020LF Wire-to-Board Connector Specifications:
- Current rating: 3.0A with 32 AWG wire; larger wires allow more; all applications require de-rating
- Withstanding voltage: 1000V RMS
- Insulation resistance: >10000MQ for wire connector, >5000MQ for PCB header
- Contact resistance: <2mQ
- Durability: 1000 cycles
- Temperature range: -40°C to +105°C
- Contact material: Brass with beryllium copper spring
- Contact plating: Gold or lead-free pure tin over nickel
- Housing material: Modified polyphenylene oxide UL94V-0 for MINI-LATCH, glass-filled nylon UL94V-0 for headers
- Mating force per contact: high force spring 450g, ultra-high force spring 100g
- Un-mating force per contact: high force spring 75g, ultra-high force spring 175g
Buy the FCI PV65039 – Reliable Wire-to-Board Connector for Industrial Applications
Secure your electronic connections with the FCI PV65039 wire-to-board connector system, offering high reliability, polarization, and multiple configurations. Designed for industrial, medical, aerospace, and communication applications, this system ensures a gas-tight connection with up to 1000 mating cycles. Its dual-metal contact design guarantees consistent contact pressure, even in rugged conditions. Easy to install and cost-efficient, these connectors are ideal for high-performance electronic device manufacturing, automation, and control systems. Purchase online today for durable, reliable performance.
Get FCI PV65039 today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 65039020LF?
You can click on the BUY or RFQ button to purchase 65039020LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 65039020LF?
You can download the 65039020LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 65039020LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
