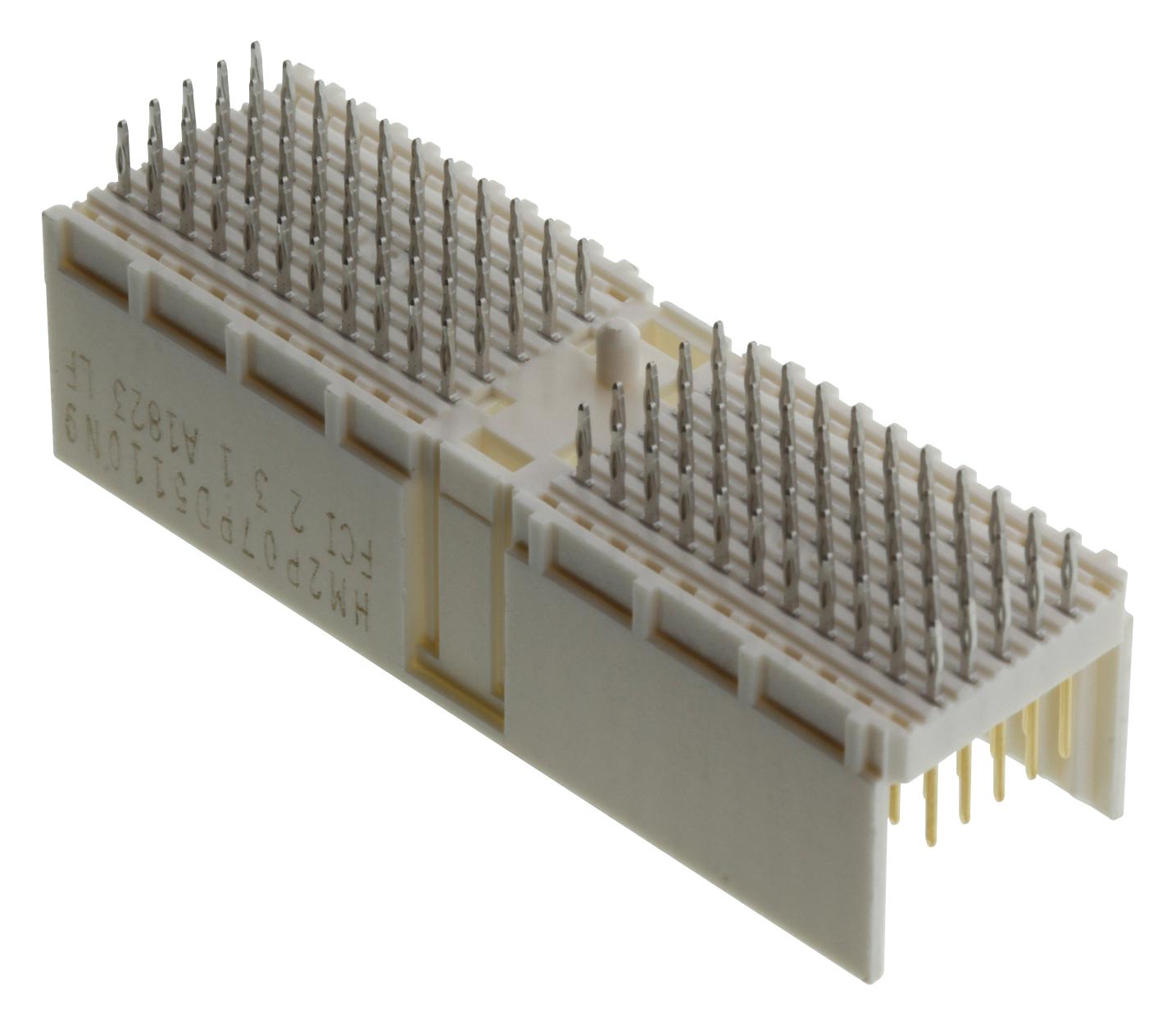

AMPHENOL COMMUNICATIONS SOLUTIONS HM2P70PME124GFLF Vertical Header Connector
The Millipacs 2mm Hard Metric Series vertical header connector offers a modular, cost-effective solution designed in accordance with IEC standards. Suitable for high-speed data applications up to 10Gbps, it features gold/palladium nickel plating, low contact resistance, and robust mechanical and environmental performance. Available in various configurations with signal, power, and coax contacts, it supports quick mating and reliable connections in communication, data, industrial, medical, and power industries. Its scalable design with optional shielding and polarization enhances versatility and ease of use.
AMPHENOL COMMUNICATIONS SOLUTIONS HM2P70PME124GFLF Vertical Header Connector Specifications:
- Material: Copper Alloy contact, thermoplastic insulator UL94V0
- Contact Plating: Gold / Palladium nickel on mating area, Tin over Nickel on press-fit area
- Operating Current: 1.5A at 20°C, 1.0A at 70°C
- Test Voltage: 750 Vrms
- Contact Resistance: 20 mΩ max
- Insulation Resistance: 10 MΩ min
- Operating Temperature: -55°C to +125°C
- Mating Force: 0.75 N max per contact
- Withdrawal Force: 0.15 N min per contact
- Misalignment Tolerance: Longitudinal +2.0mm, Transversal +2.5mm
- Inclination: ±2.0°
- Certified according to IEC 917, IEC 61076-4-101, Telcordia GR-1217-CORE
- UL and CSA Recognized
- Connection type: Press-fit and Pin-in-paste
- Available in multiple configurations with 11 to 25 columns and various lengths up to 50mm
- Environmentally rated for -55°C to +125°C operation
Buy the FCI Series HM2P70PME124GFLF: 2mm Hard Metric Vertical Header Connector
Purchase the FCI Series HM2P70PME124GFLF 2mm vertical header connector online today for a dependable and versatile connection solution. With high-speed data capability up to 10Gbps, this connector features gold/palladium nickel plating, low contact resistance, and robust mechanical performance suitable for communication, industrial, medical, and power applications. Its modular design supports various configurations, including signal, power, and coax contacts, with optional shielding for enhanced EMI protection. Easy to install with quick mating and secure connections, this connector ensures longevity and optimal performance in demanding environments.
Order your FCI Series HM2P70PME124GFLF vertical header connector today and ensure reliable, high-speed connections for advanced electronic projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS HM2P70PME124GFLF?
You can click on the BUY or RFQ button to purchase HM2P70PME124GFLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part HM2P70PME124GFLF?
You can download the HM2P70PME124GFLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of HM2P70PME124GFLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
