AMPHENOL COMMUNICATIONS SOLUTIONS 61082181402LF Mezzanine Connector
The BergStak 0.8mm Mezzanine Connector is a high-density, parallel board-to-board connector supporting up to 12Gb/s with a compact 0.8mm contact pitch. Designed for high-speed applications, it features a glass-filled LCP housing with UL94V-0 rating, and durable copper alloy contacts with gold or palladium-nickel plating for reliable signal integrity. It supports 100 mating cycles, offers impedance control from 81 to 108 ohms, and is suitable for IP phones, servers, industrial equipment, and test systems. Its flexible sizes and stack heights from 5mm to 20mm allow versatile assembly, with options for polarity, packaging, and environmental compliance, making it ideal for high-performance electronic systems.
AMPHENOL COMMUNICATIONS SOLUTIONS 61082181402LF Mezzanine Connector Specifications:
- Housing: Glass filled LCP, UL94V-0
- Contact Base Metal: Copper Alloy
- Contact Area Finish: Gold or Palladium-nickel over Nickel
- Solder Area Finish: Matte pure Tin over Nickel
- Durability: 100 mating cycles
- Mating Force: 0.9N max./contact
- Unmating Force: 0.1N min./contact
- Voltage Rating: 100VAC
- Contact Resistance: 30mΩ initial, 50mΩ after test
- Insulation Resistance: 10MΩ min. initial, 100MΩ after test
- Temperature Range: -40°C to +125°C
- Impedance Range: 81 to 108Ω
- Return Loss: <10dB up to 5GHz
- Insertion Loss: <1.5dB up to 5GHz
- Environmental: Humidity 90-95%, high temp life 105°C for 1000 hours
- Certifications: UL Listed, RoHS compliant
- Packaging: Tape & Reel, tubes
- Application: high-speed data, PCB stacking, industrial systems

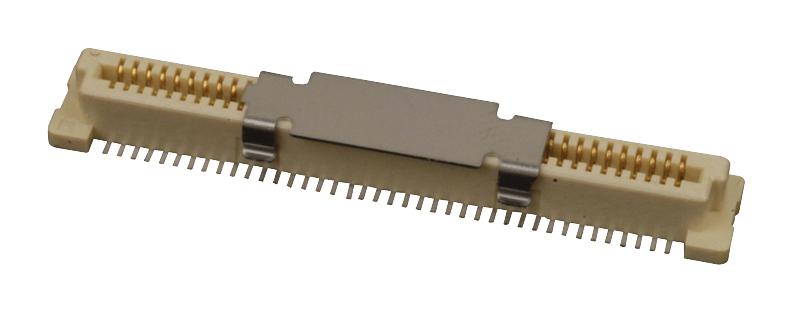

Buy the Buy Amphenol BergStak 0.8mm Mezzanine Connector Part Number 61082181402LF Online
Order the BergStak 0.8mm Mezzanine Connector from Amphenol now to ensure high-speed, reliable board-to-board connectivity for your electronic applications. Featuring a compact design with a 0.8mm pitch and support for up to 12Gb/s, this connector is ideal for high-density, high-performance systems such as servers, industrial Equipment, and diagnostics systems. Its flexible sizes and stack heights from 5mm to 20mm enable versatile assembly options. With UL94V-0 housing, gold or palladium-nickel plating, and environmental compliance, it's engineered for durability, signal integrity, and safe operation in demanding environments.
Buy Amphenol BergStak 0.8mm PartNumber 61082181402LF now and experience unmatched reliability and performance in high-density electronic connections.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 61082181402LF?
You can click on the BUY or RFQ button to purchase 61082181402LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 61082181402LF?
You can download the 61082181402LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 61082181402LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
