AMPHENOL COMMUNICATIONS SOLUTIONS 65039021LF Wire-to-Board Connector System
The PV wire-to-board connector system features a unique dual-metal crimp receptacle with high reliability, durability, and high retention. It connects discrete wires to printed circuit boards, maintaining contact pressure over 1000 mating cycles. The system includes shrouded headers, MINI-LATCH housings, and a variety of configurations ranging from single to double row, with polarized, high, or ultra-high spring force options. Suitable for industrial, automotive, medical, data, communication, military, and aerospace applications, it offers reliable gas-tight crimps, exceptional insertion/removal forces, and RoHS-compliant materials for robust performance in demanding environments.
AMPHENOL COMMUNICATIONS SOLUTIONS 65039021LF Wire-to-Board Connector System Specifications:
- Contact material: Brass with beryllium copper spring
- Contact plating: Gold, pure tin over nickel, or GXT™
- Housing material: Modified polyphenylene oxide, glass-filled nylon
- Current rating: 3.0A with 32 AWG wire, derating applies for larger wires
- Withstanding voltage: 1000V RMS
- Insulation resistance: >10000MQ (wire connector), >5000MQ (header)
- Contact resistance: <2mQ
- Durability: 1000 cycles
- Operating temperature: -40°C to +105°C
- Wire range: Up to 1.52mm diameter
- Mating force: 75g to 450g depending on spring type
- Un-mating force: 75g to 175g depending on spring type
- Compliance: RoHS
- Standards: URE66906, CSALR46923

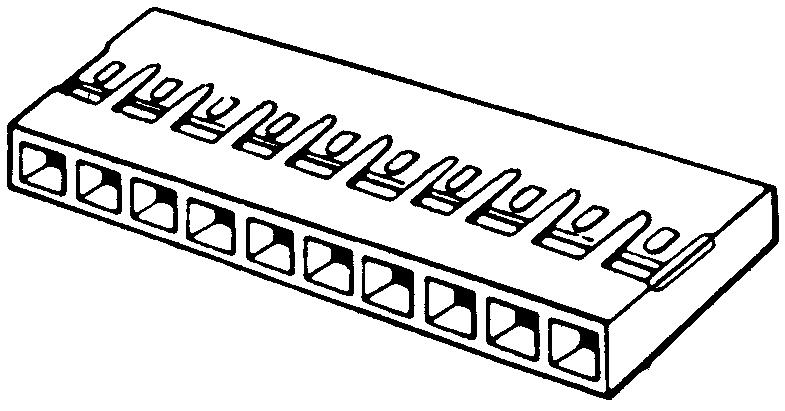

Buy the FCI Series PV Wire-to-Board Connectors: 65039021LF
Enhance your electronic assemblies with our reliable wire-to-board connector system. Designed for high durability and high retention, it offers a secure connection through gas-tight crimps, polarized housings, and high cycle durability. Suitable for industrial, medical, automotive, and communication applications, this system features a variety of configurations with different spring forces to match your performance needs. RoHS-compliant and easy to install, making your projects safer and more efficient. Purchase online today for proven quality and dependable performance in demanding environments.
Order your FCI SeriesPV wire-to-board connector today and ensure reliable, durable connections for industrial, automotive, and medical projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 65039021LF?
You can click on the BUY or RFQ button to purchase 65039021LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 65039021LF?
You can download the 65039021LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 65039021LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
