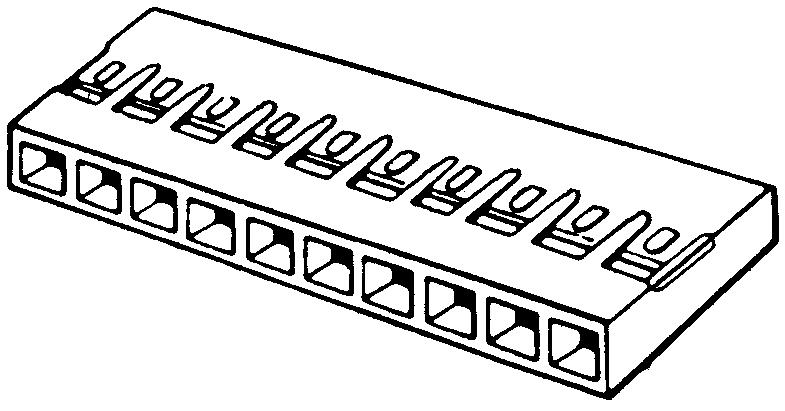

AMPHENOL COMMUNICATIONS SOLUTIONS 65039028LF Wire-to-Board Connector
The PV wire-to-board connector system is designed for high reliability and durability in applications such as industrial equipment, automotive electronics, and medical devices. Featuring a dual-metal crimp receptacle for secure connections to 0.025 inch posts, it includes shrouded headers and MINI-LATCH housings that prevent mis-mating and disengagement. The system supports single and double-row configurations, customizable spring forces, and RoHS-compliant materials, offering excellent electrical performance, durability up to 1000 mating cycles, and voltage withstand of 1000V RMS.
AMPHENOL COMMUNICATIONS SOLUTIONS 65039028LF Wire-to-Board Connector Specifications:
- Contact material: Brass body and beryllium copper spring
- Contact plating: Gold or lead-free pure tin over nickel
- Housing material: Modified polyphenylene oxide UL94V-0, glass-filled nylon UL94V-0
- Current rating: 3.0A with 32 AWG wire
- Withstanding voltage: 1000V RMS
- Insulation resistance: >10000MQ (wire connector), >5000MQ (header)
- Contact resistance: <2mQ
- Mating force: 450g (high force spring), 100g (ultra-high force spring)
- Un-mating force: 75g (high force spring), 175g (ultra-high force spring)
- Temperature range: -40°C to +105°C
- Durability: 1000 cycles
- RoHS compliant parts with 'LF' suffix
Buy the FCI Series PV Wire-to-Board Connector System: 65039028LF
Purchase the FCI 65039028LF wire-to-board connector system online today for secure, reliable connections in industrial, automotive, and medical electronics. Designed with dual-metal contacts and shrouded headers, it ensures long-lasting durability through up to 1000 mating cycles. The system’s RoHS-compliant materials and customizable spring forces meet diverse application needs, providing excellent electrical performance with a voltage withstand of 1000V RMS. Simplify your assembly process and ensure high-quality, safe connections by ordering online now.
Get FCI 65039028LF today—built for high reliability, durability, and safe electrical connections in industrial, automotive, and medical applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 65039028LF?
You can click on the BUY or RFQ button to purchase 65039028LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 65039028LF?
You can download the 65039028LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 65039028LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
