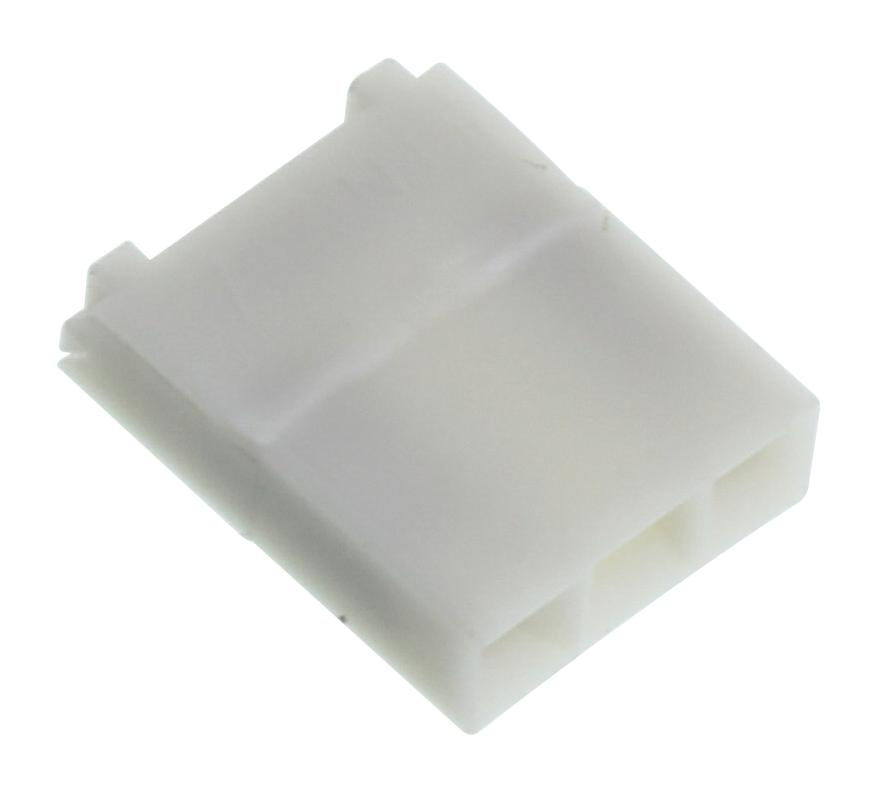

AMPHENOL COMMUNICATIONS SOLUTIONS 65771001LF Wire Connector
The product is a wire-to-board connector system designed for reliable electrical connections in high-temperature environments. It features dual-beam contacts for durability, a low-profile housing rated UL94V-0, and gold or tin plating over nickel for enhanced conductivity and corrosion resistance. Suitable for applications requiring up to 3A current per contact, it withstands temperatures from -65°C to +125°C, supports 200 mating cycles, and employs a straightforward stacking design for versatile use. The connectors are RoHS compliant, compatible with wave, vapor-phase, and IR reflow soldering, and come in various configurations including vertical, horizontal, and crimp-to-wire options.
AMPHENOL COMMUNICATIONS SOLUTIONS 65771001LF Wire Connector Specifications:
- Housing: Glass filled thermoplastic polyester, UL94V-0 rated
- Pin Material: Phosphor-bronze with gold or tin plating over nickel
- Current Rating: 3A DC per contact
- Insulation Resistance: 1x10^7 MQ minimum
- Contact Resistance: 15MQ max. initial, 20MQ max. after environmental tests
- Dielectric Withstanding Voltage: 1000V RMS
- Operating Temperature Range: -65°C to +125°C
- Mating Cycles: 200
- Insertion Force: 1.50 N (gold), 1.50 N (surface mount)
- Withdrawal Force: 0.30 N minimum per gold contact
- Insertion Depth: 3.6mm to 7.5mm depending on type
- RoHS Compliant: Yes
- Packaging: Plastic bags, tubes, tape-and-reel options
- Compatible with wave soldering, vapor-phase, and IR reflow processes
Buy the Buy FCI Wire-to-Board Connector Part Number 65771001LF Online
Purchase the FCI wire-to-board connector online for high-reliability, temperature-resistant, dual-beam contact design. Perfect for industrial, automation, and electronic systems. This connector supports 3A current per contact, offers easy stacking options, and is RoHS compliant. It withstands temperatures from -65°C to +125°C and provides up to 200 mating cycles, ensuring longevity and dependable performance in demanding environments. Available in various configurations, it meets industry standards for safety and quality, making it an ideal choice for professionals seeking durable electrical connection solutions.
Get FCI 65771001LF wire-to-board connector today—designed for reliable, high-temperature applications with quick assembly and long-lasting durability.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 65771001LF?
You can click on the BUY or RFQ button to purchase 65771001LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 65771001LF?
You can download the 65771001LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 65771001LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
