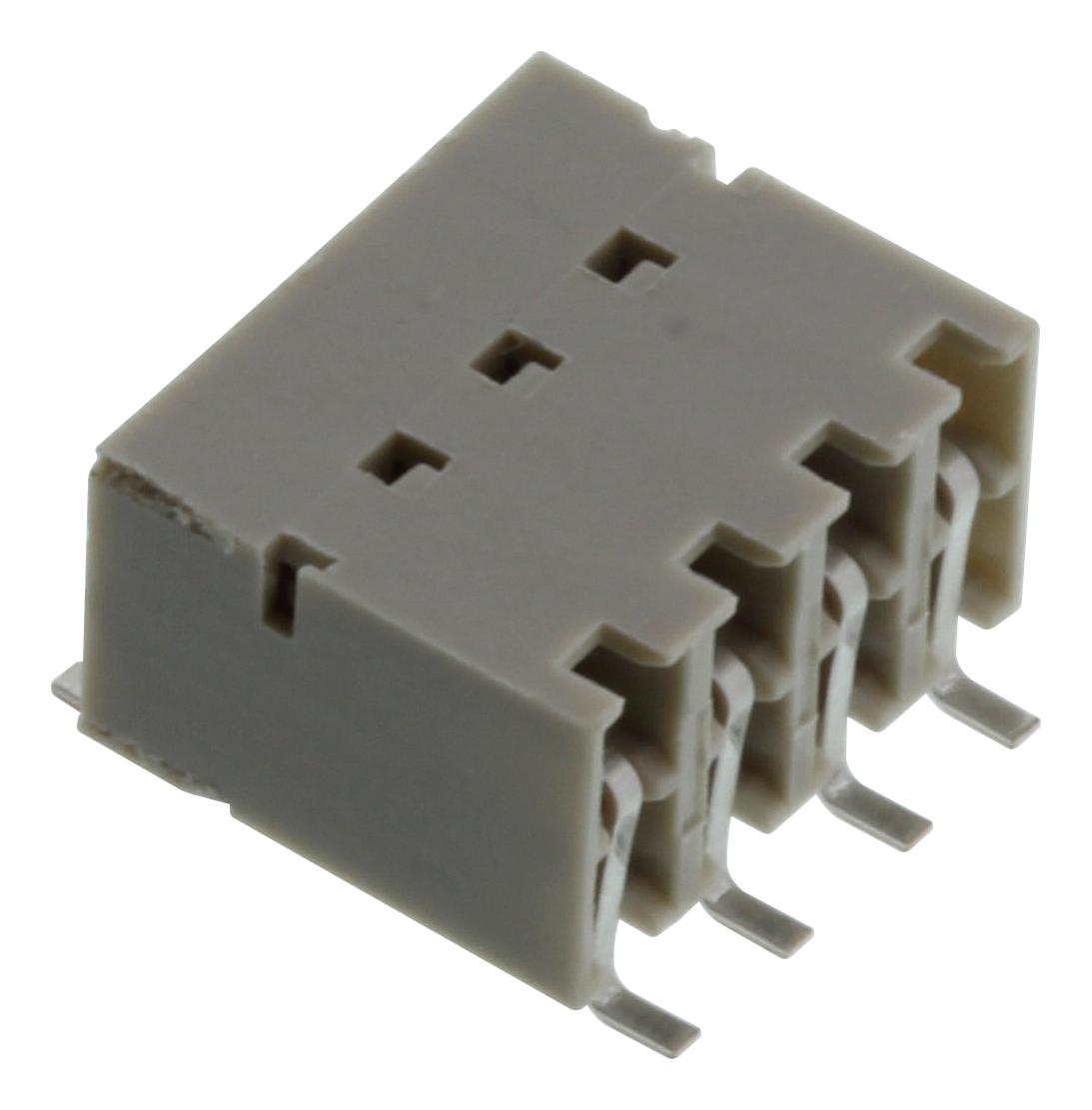

AMPHENOL COMMUNICATIONS SOLUTIONS 71609304LF Dubox Shunts
Amphenol's Dubox Shunts are robust board-to-board connectors designed for reliable and efficient connections. Their dual-beam contact design ensures added reliability, while the slotted cutout in the low-profile housing simplifies electrical testing. These connectors are stackable in both side-by-side and end-to-end configurations, making them suitable for a wide range of industrial applications. Constructed with high-temperature thermoplastic housing and phosphor-bronze pins with gold or tin plating, Dubox Shunts offer excellent performance and durability.
AMPHENOL COMMUNICATIONS SOLUTIONS 71609304LF Dubox Shunts Specifications:
- Housing: High temperature, black thermoplastic
- Flammability rating: UL94V-0
- Pin: Phosphor-bronze
- Plating: Gold or tin over 1.27μm (50μin.) nickel
- File no.: E66906
- File no. LR46923: LR46923
- Current rating: 2.5A max. per contact
- Insulation resistance: 50,000MΩ min
- Contact resistance: 15MΩ max. initial, 20MΩ max. after environmental tests
- Dielectric withstanding voltage: 800V
- Operating temperature range: -65°C to +125°C
- Mating cycles (durability) - Gold: 50
- Mating cycles (durability) - Tin: 25
- Insertion force (gold contact): 450gf max.
- Insertion force (tin-lead contact): 500gf max.
- Withdrawal force (gold contact): 30gf min.
- Withdrawal force (tin-lead contact): 30gf min.
- Insertion depth: 4.85 mm (.191in.) min.
- Wipe: 3.81 mm (.015in.)
Buy the 71609-304LF AMPHENOL COMMUNICATIONS SOLUTIONS Dubox Shunts | myMectronic
Securely purchase the AMPHENOL COMMUNICATIONS SOLUTIONS 71609-304LF Dubox Shunts online for your industrial needs.
Buy Now
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 71609304LF?
You can click on the BUY or RFQ button to purchase 71609304LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 71609304LF?
You can download the 71609304LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 71609304LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
