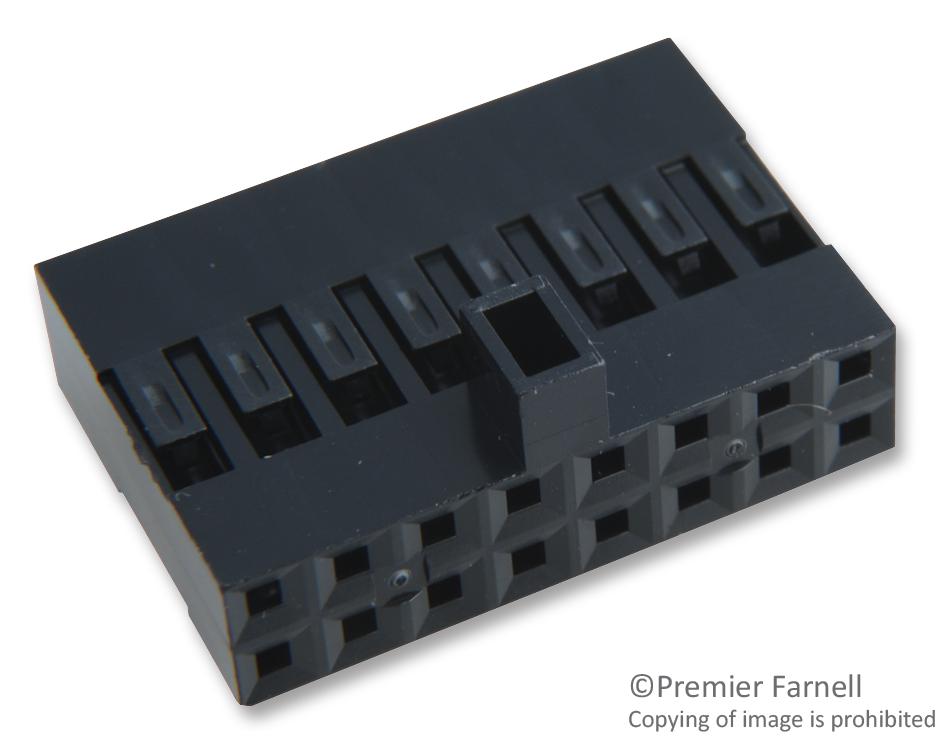

AMPHENOL COMMUNICATIONS SOLUTIONS 65846011LF Wire Connector
This wire-to-board connector system combines high reliability, durability, and retention, featuring dual-metal PV receptacle contacts that maintain contact force through 1000 mating cycles. It supports a variety of configurations including single and double row headers, polarized MINI-LATCH housings, shrouded headers, and customizable spring pressures. Materials like brass, beryllium copper, and high-performance plastics ensure electrical excellence, with up to 3.0A current per circuit, withstand voltage of 1000V RMS, and operating temperatures from -40°C to +105°C. Suitable for industrial, medical, automotive, data, military, and communication applications, it offers easy tooling and RoHS-compliant options.
AMPHENOL COMMUNICATIONS SOLUTIONS 65846011LF Wire Connector Specifications:
- Current Rating: 3.0A per circuit with 32 AWG wire, de-rating for larger wires
- Maximum Voltage: 1000V RMS
- Insulation Resistance: >10000MQ for wire connector, >5000MQ for PCB headers
- Contact Resistance: <2mQ
- Operating Temperature Range: -40°C to +105°C
- Materials: Brass, beryllium copper, phosphor bronze, modified polyphenylene oxide, glass-filled nylon
- Plating: Gold or lead-free pure tin over nickel
- Housing: RoHS-compliant UL94V-0 plastics
- Mechanical Durability: 1000 cycles
- Wire sizes supported: 22-32 AWG, max wire diameter 1.52mm
Buy the Buy FCI Wire-to-Board Connector Part Number 65846011LF Online
Purchase the FCI wire-to-board connector online today to experience high durability, reliable contact performance, customizable options, and compliance with industry standards. Ideal for industrial, automotive, medical, and communication applications, this connector system guarantees secure, gas-tight crimping, extended mating cycles, and versatile configurations to fit your specific needs. Easy to assemble with supported tooling options, it provides excellent electrical performance at operating temperatures from -40°C to +105°C, making it the perfect choice for professionals seeking quality and reliability in electronic assembly.
Order your FCI Series65846011LF wire-to-board connector today and ensure reliable electrical connections for industrial and automotive projects.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 65846011LF?
You can click on the BUY or RFQ button to purchase 65846011LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 65846011LF?
You can download the 65846011LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 65846011LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
