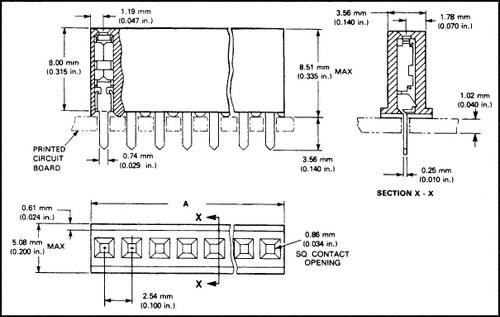

AMPHENOL COMMUNICATIONS SOLUTIONS 66951014LF Industrial Board Connectors
The product is a high-quality, low-profile wire-to-board and board-to-board connector system designed for reliable electrical connections in industrial applications. Featuring dual-beam contacts for enhanced durability, a compact housing made of UL94V-0 thermoplastic, and gold or tin plating for superior corrosion resistance. These connectors support up to 3A DC current per contact, withstand temperatures from -65°C to +125°C, and are compatible with wave soldering processes. Suitable for automation systems, electronic devices, and manufacturing equipment requiring robust, stackable, and easy-to-test interconnections.
AMPHENOL COMMUNICATIONS SOLUTIONS 66951014LF Industrial Board Connectors Specifications:
- Housing: High temperature thermoplastic, UL94V-0
- Materials: Phosphor-bronze pins, copper alloy contacts
- Plating: Gold or tin over nickel
- Current rating: Up to 3A per contact for vertical and horizontal receptacles
- Temperature range: -65°C to +125°C
- Insulation resistance: 50,000MQ min (shunt connectors), 1x10°MQ min (vertical receptacles)
- Contact resistance: 15MQ max. initial, 20MQ max. after environmental tests
- Dielectric withstanding voltage: 800V (shunts), 1000V RMS (receptacles)
- Mating cycles: 50 (shunts), 200 (receptacles)
- Insertion force: Max 450gf (gold contacts), 150gf (vertical receptacles), Max 1.50 N (horizontal contacts)
- Withdrawal force: Min 30gf (gold contacts)
- Insertion depth: 4.85 mm (shunts), 3.6mm to 7.50mm (receptacles), 3.6mm min (horizontal), 6mm min. (vertical)
- Operating temperature: -65°C to +125°C
- Environmental compliance: RoHS compatible, IEC 603-81, IEC 603-8 standards
- Packaging: Plastic bags, tubes, tape-and-reel options
- Processing: Compatible with wave, vapor-phase, IR reflow soldering processes
Buy the FOUR-PLUS Reliable Connectors for Industrial Applications
Order FCI high-quality board and wire-to-board connectors today through our online store. Designed for durability, easy testing, and stackability, these connectors ensure reliable performance across industrial electronics, automation, and manufacturing equipment. With corrosion-resistant plating, wide temperature tolerance, and RoHS compliance, they are ideal for demanding applications. Shop now to secure efficient, durable, and secure electrical connections that meet industry standards and streamline your assembly process.
Buy FCI connectors now and experience unmatched reliability and performance in your electronic systems.
