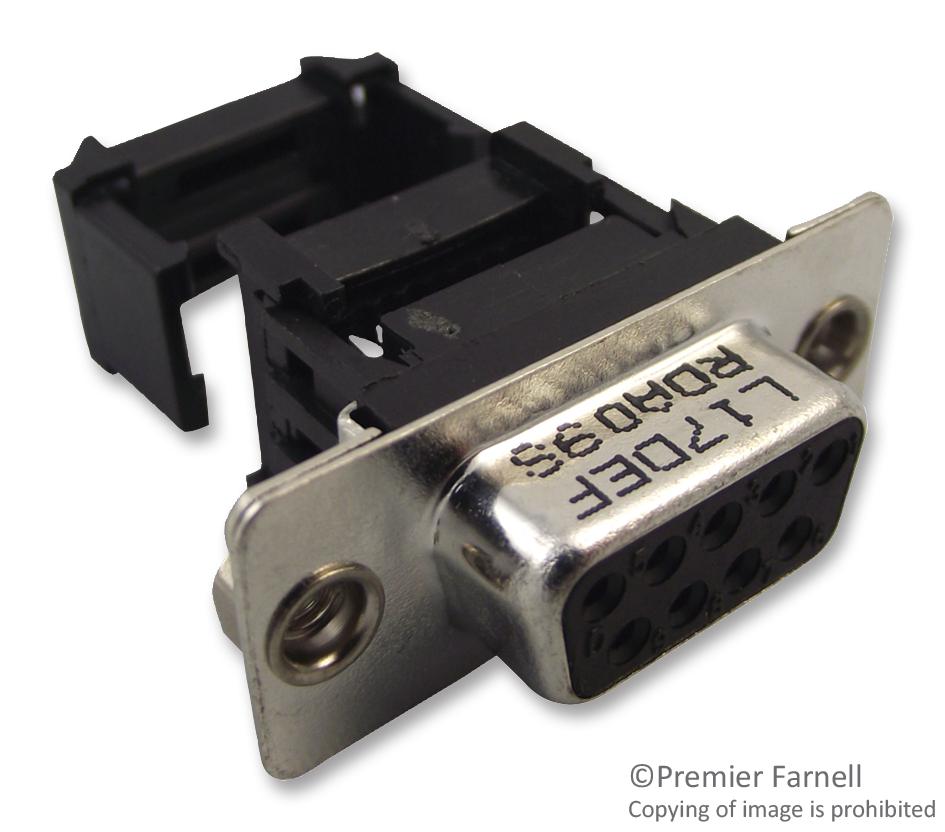

AMPHENOL COMMUNICATIONS SOLUTIONS L17DEFRDA09S D-Sub Connector
These compact D-Sub connectors are designed for modern peripheral equipment, featuring special contact design compatible with standard 1.27mm flat cable and all industry-standard 1/0 connections. Made from steel shells with nickel plating and glass-filled thermoplastic insulators, they offer a current rating of 5A and voltage rating of 250V AC. With withstand voltage of 1000 AC/rms for one minute, operating temperature from -40°C to +125°C, and optional RoHS-compliant gold flash plating. Suitable for telecom, industrial, and electronic device applications, they ensure reliable connections with high insulation and low contact resistance, supporting varied mounting options and cable assemblies.
AMPHENOL COMMUNICATIONS SOLUTIONS L17DEFRDA09S D-Sub Connector Specifications:
- Shell Material: Steel with nickel plating
- Insulator Material: Glass-filled thermoplastic, UL 94V-0
- Pin Contact Material: Brass with gold and nickel plating
- Socket Contact Material: Brass with gold and nickel plating
- Current Rating: 5A
- Voltage Rating: 250V AC/rms 60Hz
- Withstanding Voltage: 1000 AC/rms for one minute
- Insulation Resistance: 1000MΩ
- Contact Resistance: 20mΩ max
- Operating Temperature: -40°C to +125°C
- Material Platings: 0.4μm to 0.76μm gold flash options
- Contact Size Options: 9 (size E), 15 (size A), 25 (size B), 37 (size C)
- Dimensions vary by size, with detailed measurements provided
- Mounting Options: Front metal shell, rear insert, screwlock, threaded inserts, and panel mounting options
Buy the Amphenol L17DEFRDA09S – Reliable D-Sub Connectors for Industrial Applications
Secure your reliable connections with the durable D-Sub connector available online. Designed for modern industry standards, it supports flat ribbon cables and offers flexible mounting options. Made from high-quality materials with corrosion-resistant plating and rated for operating temperatures from -40°C to +125°C, ensuring longevity. Perfect for industrial, telecom, and electronic applications, this connector provides low contact resistance and high insulation resistance, making it a dependable choice for high-performance cable assemblies. Order now to enhance your electronic connectivity confidently.
Buy Amphenol L17DEFRDA09S now and experience unmatched reliability and performance in your electronics and industrial cable assemblies.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS L17DEFRDA09S?
You can click on the BUY or RFQ button to purchase L17DEFRDA09S from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part L17DEFRDA09S?
You can download the L17DEFRDA09S datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of L17DEFRDA09S?
AMPHENOL COMMUNICATIONS SOLUTIONS
