AMPHENOL COMMUNICATIONS SOLUTIONS 68002103HLF unshrouded headers
The BergStik 2.54mm unshrouded headers are versatile connectors available in SMT, THT, press-fit, stacking, and pin-in-paste versions, designed for high-density electronic applications. Manufactured from high-temperature thermoplastic with UL94V-0 flammability rating, these headers feature phosphor-bronze pins with gold or tin over nickel plating. They support up to 3A per contact, with insulation resistance of at least 5000MQ and dielectric withstand voltage of 1500V. Suitable for operating temperatures from -65°C to +125°C, they provide reliable and flexible interconnect solutions for board-to-board, wire-to-board, and cable-to-board configurations, compatible with wave, vapor-phase, and IR reflow soldering processes.
AMPHENOL COMMUNICATIONS SOLUTIONS 68002103HLF unshrouded headers Specifications:
- Housing: High temperature thermoplastic, UL94V-0
- Pin Material: Phosphor-bronze
- Plating: Gold or Tin over 1.27μm Nickel
- Current Rating: 3A per contact
- Insulation Resistance: 5000MQ min
- Dielectric Withstanding Voltage: 1500V
- Operating Temperature: -65°C to +125°C
- Mechanical Retention Force: 9N min
- Compatible with wave, vapor-phase, and IR reflow soldering processes
- Available in multiple configurations: straight, right angle, single, and double row
- Pin sizes: 0.38mm to 0.76mm diameter, with optional custom dimensions
- RoHS compliant according to EU Directive 2002/95/EC
- Packaging: Bags, tape and reel, or tubes, customizable based on order

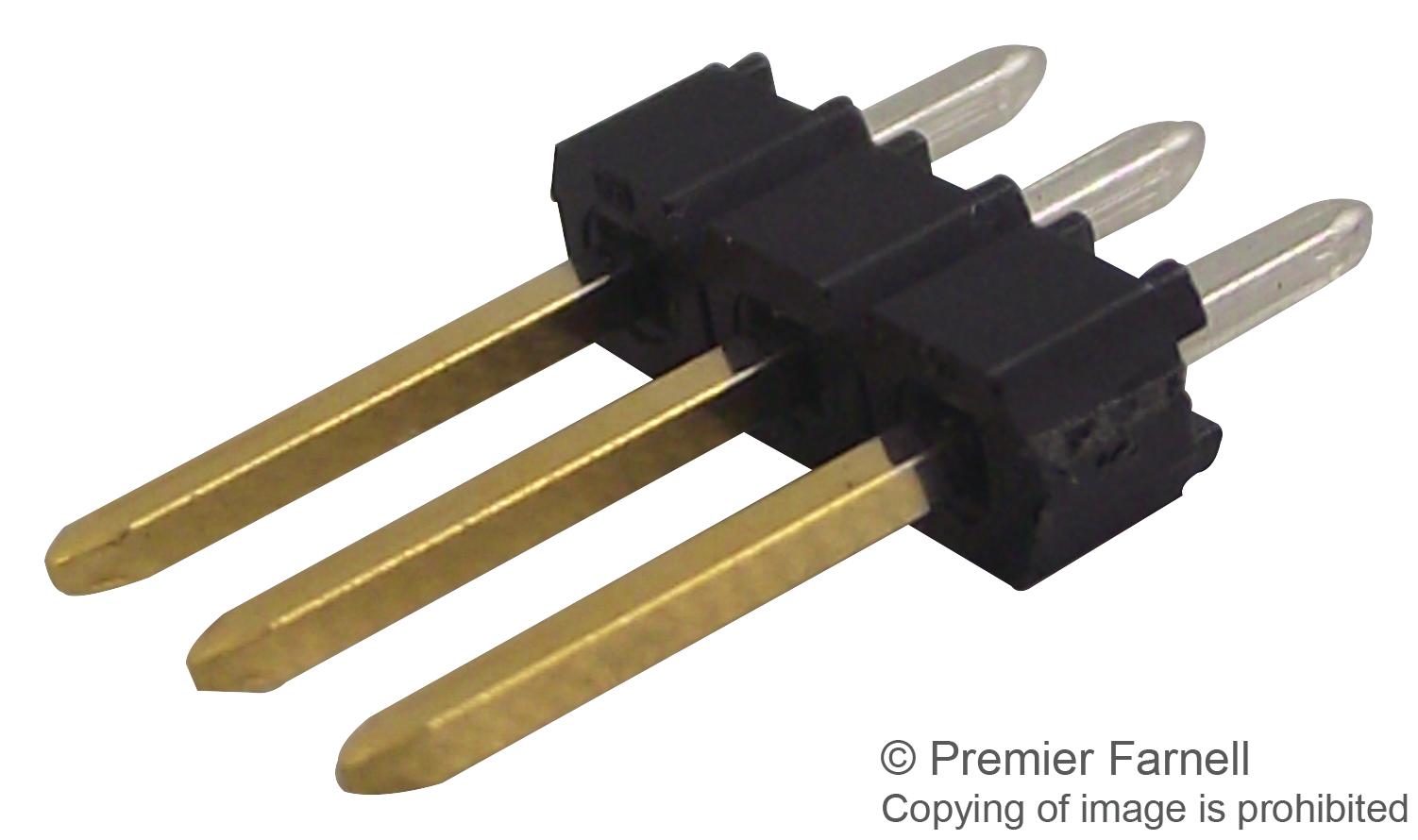

Buy the Buy BergStik 2.54MM Unshrouded Headers Part Number 68002103HLF Online
Purchase BergStik 2.54mm unshrouded headers now for reliable PCB connections in various configurations. Ideal for industrial, automotive, and electronic equipment requiring high current capacity, thermal resilience, and flexible assembly options. Perfect for board-to-board, wire-to-board, and cable-to-board applications, these headers support SMT, THT, and pin-in-paste processes. Featuring durable thermoplastic housing, phosphor-bronze pins with gold or tin plating, and RoHS compliance, they ensure long-term performance and easy integration into your manufacturing process.
Get BergStik 2.54MM unshrouded headers today—designed for high current, temperature resilience, and versatile PCB interconnect solutions.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 68002103HLF?
You can click on the BUY or RFQ button to purchase 68002103HLF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 68002103HLF?
You can download the 68002103HLF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 68002103HLF?
AMPHENOL COMMUNICATIONS SOLUTIONS
