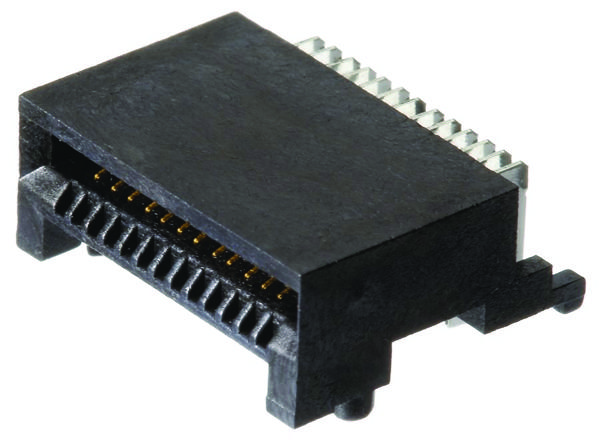

AMPHENOL COMMUNICATIONS SOLUTIONS FS1R262000 Mini-SAS Connector
The FS Series connector system by Amphenol is a high-speed serial interconnect designed for gigabit data transmission up to 6 Gbps. It features 26 positions with 0.8mm pitch SMT receptacles and coplanarity of 0.1mm. The system includes cages available in standard and 0° versions, with multiple keying options, EMC gaskets, and M2 screws. It supports 0.5A current, 30V voltage, and durable for 250 mating cycles, ideal for servers, storage, and networking equipment, with operating temperatures from -55°C to +85°C.
AMPHENOL COMMUNICATIONS SOLUTIONS FS1R262000 Mini-SAS Connector Specifications:
- 26 position 0.8mm pitch SMT receptacle
- Coplanarity: 0.1mm
- Insertion force: 55.5 N maximum
- Withdrawal force: 49.0 N maximum
- Durability: 250 mating cycles
- Maximum current: 0.5A per contact
- Maximum voltage: 30V per contact
- LLCR: 80 mΩ max
- Insulation resistance: 1000 MΩ at 100V DC for 60 seconds
- DWV: 300 V minimum DC for 60 seconds
- Operating temperature: -55°C to +85°C
- Housing material: Glass-reinforced thermoplastic, UL94V-0 rated
- Contact material: Copper alloy with plating options
- Cage material: Zinc alloy with nickel plating
- Process: Tape and reel packaged for automated placement
Buy the Buy Amphenol Mini-SAS Part Number FS1R262000 Online
Purchase the Amphenol Mini-SAS connector series online today for reliable high-speed serial data transfer of up to 6 Gbps. Designed with precision coplanarity, durable contacts, and multiple keying options, this high-quality connector is ideal for servers, storage devices, and networking applications. Its rugged construction supports 250 mating cycles and operates efficiently across -55°C to +85°C temperature range. Choose from various configurations including EMC gaskets and different plating options. Secure dependable performance for your high-speed data needs effortlessly online.
Buy Amphenol FS1R262000 connector now and ensure high-speed data transmission with durable high-performance design perfect for servers and storage solutions.
