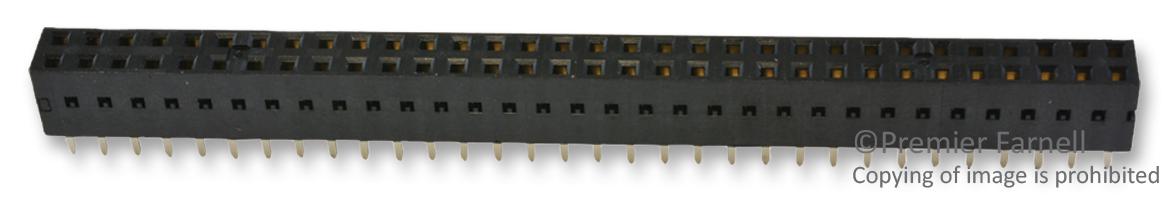

AMPHENOL COMMUNICATIONS SOLUTIONS 68683332LF Board-to-Board Connector
The 68683 series Dubox Board-to-Board Connector is versatile for base stations, industrial controls, and communication systems. It features single or double-row configurations, straight or right-angle orientations, and accommodates 2 to 50 positions. Each contact supports up to 3A, with a dual beam, pre-stressed, low insertion force design for reliable signal integrity. Its four-wall contact enhances signal protection, and floating solder tails ensure easy, precise mating. Constructed from high-temp thermoplastics, it withstands infrared and vapor-phase reflow soldering, facilitating robotic placement and maintaining alignment for durable applications in industrial, networking, and testing environments.
AMPHENOL COMMUNICATIONS SOLUTIONS 68683332LF Board-to-Board Connector Specifications:
- Current rating: 3A per contact
- Materials: High-temperature thermoplastic housing, phosphor-bronze contacts, gold or tin plating
- Insulation resistance: 50,000MQ min.
- Contact resistance: 15MQ max. initial, 20MQ after environmental tests
- Dielectric withstanding voltage: 800V to 1000V RMS
- Operating temperature: -65°C to +125°C
- Mating cycles: 50 for gold, 25 for tin
- Insertion force: Max. 450gf (gold), 500gf (tin) per contact
- Withdrawal force: Min. 30gf
- Insertion depth: 4.85mm min.
- ROHS compliant
- Compatible with vapor-phase, IR reflow, and wave soldering processes
- Designed for stackability, precise mating, and signal protection
Buy the FCI Series Dubox Board-to-Board Connector: 68683 Series Part 68683332LF
Enhance your project’s reliability with the FCI Dubox 68683332LF board-to-board connector, supporting 2 to 50 positions and features like dual beam contacts and high-temperature plastics. Designed for industrial, networking, and testing environments, it ensures easy, precise mating with floating solder tails for self-centering, withstands various soldering processes, and provides high signal integrity with low insertion force. Stocked in versatile configurations, buy online now to ensure durable and efficient connections in your electronic system.
Buy FCI Dubox 68683332LF board-to-board connector now and experience unmatched reliability and performance in industrial, communication, and test applications.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS 68683332LF?
You can click on the BUY or RFQ button to purchase 68683332LF from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part 68683332LF?
You can download the 68683332LF datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of 68683332LF?
AMPHENOL COMMUNICATIONS SOLUTIONS
