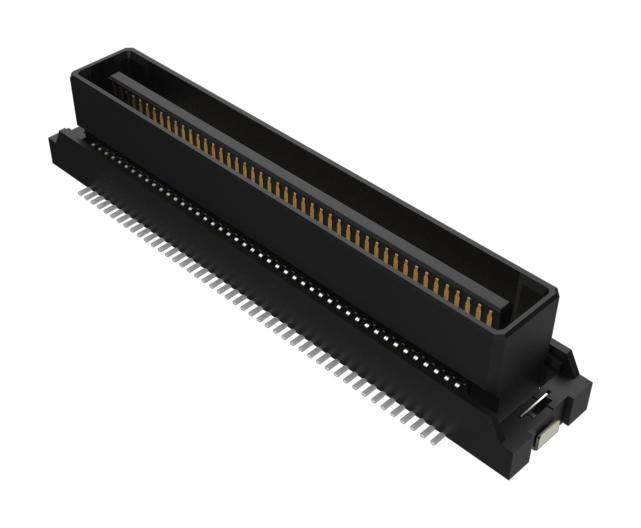

AMPHENOL COMMUNICATIONS SOLUTIONS B4061B7L111290E100 Floating Board-to-Board Connectors
The 0.80mm pitch floating board-to-board connectors series by Amphenol, including B406, B407, and B410, offers high-speed data transmission up to 2.5Gb/s and a floating range of +0.50mm in X, Y, and Z directions. Designed with a high-temperature thermoplastic housing and gold-plated contacts, these connectors are ideal for applications requiring reliable connection resistance to vibration, misalignment during surface mounting, and stable performance in environments from -40°C to +105°C. Suitable for diverse industries like automotive, industrial automation, and telecommunications, they support multiple configurations for vertical and right-angle mating. Durability ensures up to 30 mating cycles, with UL and RoHS certifications confirming safety and compliance.
AMPHENOL COMMUNICATIONS SOLUTIONS B4061B7L111290E100 Floating Board-to-Board Connectors Specifications:
- Pitch: 0.80mm
- Material Housing: LCP, UL94V-0
- Contact Material: Phosphor bronze
- Contact Plating: Gold over nickel
- Contact Thickness: 0.15mm
- Housing Color: Black (LCP), Natural (cap)
- Operating Temperature: -40°C to +105°C
- Voltage Rating: 50V AC/DC
- Current Rating: 0.5A
- Insertion Force: 0.39N/pin max
- Withdrawal Force: 0.05N/pin min
- Terminal Retention Force: 2.9N/terminal min
- Durability: 30 mating cycles
- Certifications: UL E478701, RoHS compliant
- Packaging: Tape & Reel
Buy the Amphenol B406/B407/B410 U+2013 Reliable Floating Board-to-Board Connectors for Industrial Applications
Order the Amphenol floating board-to-board connectors today to experience high-speed data transfer of up to 2.5Gb/s, exceptional vibration resistance, and reliable performance in demanding industrial and automotive environments. Designed with a robust high-temperature thermoplastic housing and gold-plated contacts, these connectors support multiple configurations and are UL and RoHS certified. With a durability of 30 mating cycles, they are ideal for applications requiring precise alignment and reliable electrical connectivity across a wide temperature range from -40°C to +105°C. Purchase online now for fast delivery and superior quality assurance.
Get Amphenol B406/B407/B410 today—built for high-speed data transmission, vibration resistance, and long-lasting durability.
