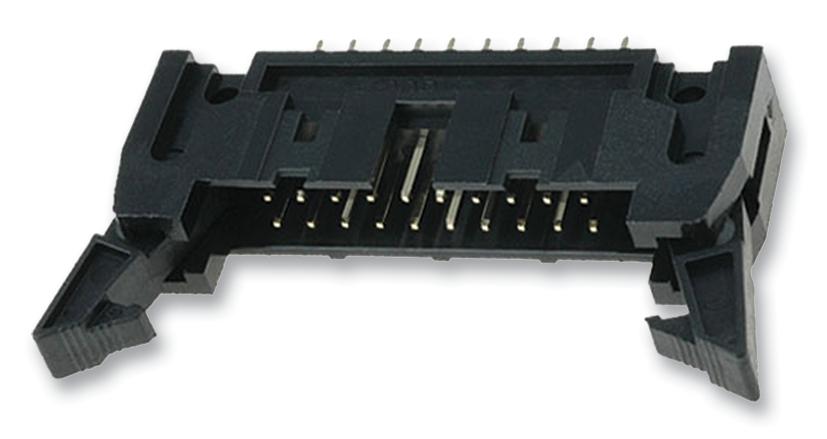

AMPHENOL COMMUNICATIONS SOLUTIONS T816116A1S101CEU Latch Header Connector
The T816 phenol latch header is a reliable 2.54mm pitch electronic connector designed for industrial applications. It features a variety of housing colors, with options for gold or tin plating, and accommodates multiple pin counts from 6 to 64. The connector utilizes PBT+25%G.F insulators and brass contacts plated with gold or tin, ensuring durability and optimal electrical performance. Its operating temperature ranges from -40°C to +105°C, with a current rating up to 3.0A. Suitable for PCB mounting with straight, right-angled, or long latch options for versatile assembly.
AMPHENOL COMMUNICATIONS SOLUTIONS T816116A1S101CEU Latch Header Connector Specifications:
- Pitch: 2.54mm
- Housing Color: Grey, Black
- Number of Positions: 6, 8, 10, 14, 16, 18, 20, 24, 26, 35, 40, 48, 60, 64
- Pin Dimensions: A=2.54 X No. of Contacts/2+0.20, B=2.54 X No. of Positions/2+9.00
- Contact Material: Brass, Gold or Tin Plated over 50u" Ni
- Insulator Material: PBT+25%G.F, UL 94V-0
- Contact Resistance: 20 mΩ max at 1A
- Insulation Resistance: 1000 MΩ min at 500V/DC
- Dielectric Withstanding Voltage: 500 VAC RMS 60Hz for 1 min
- Current Rating: 3.0A max
- Voltage Rating: 250V AC/RMS 60Hz, DC
- Operating Temperature: -40°C to +105°C
Buy the Berg 7816 Series U+2013 Reliable Latch Headers for Industrial Applications
Discover the Berg latch header connector from the 7816 Series, perfect for industrial electronic projects. With a 2.54mm pitch, multiple pin options, and durable gold or tin plating, this connector ensures reliable electrical connections. Its PBT insulator withstands harsh environments, operating from -40°C to +105°C. Ideal for PCB mounting with straight, right-angled, or long latch configurations, it offers a maximum current of 3.0A and a voltage of 250V. Purchase online today for quality and durability in your industrial electronics.
Get Berg 7816 Series latch headers today—designed for robust performance and reliable PCB connections in industrial environments.
Frequently Asked Questions
Where can I buy AMPHENOL COMMUNICATIONS SOLUTIONS T816116A1S101CEU?
You can click on the BUY or RFQ button to purchase T816116A1S101CEU from an authorized AMPHENOL COMMUNICATIONS SOLUTIONS distributor.
How do I troubleshoot issues or seek technical support for part T816116A1S101CEU?
You can download the T816116A1S101CEU datasheet or visit the AMPHENOL COMMUNICATIONS SOLUTIONS website for support.
Who is the manufacturer of T816116A1S101CEU?
AMPHENOL COMMUNICATIONS SOLUTIONS
