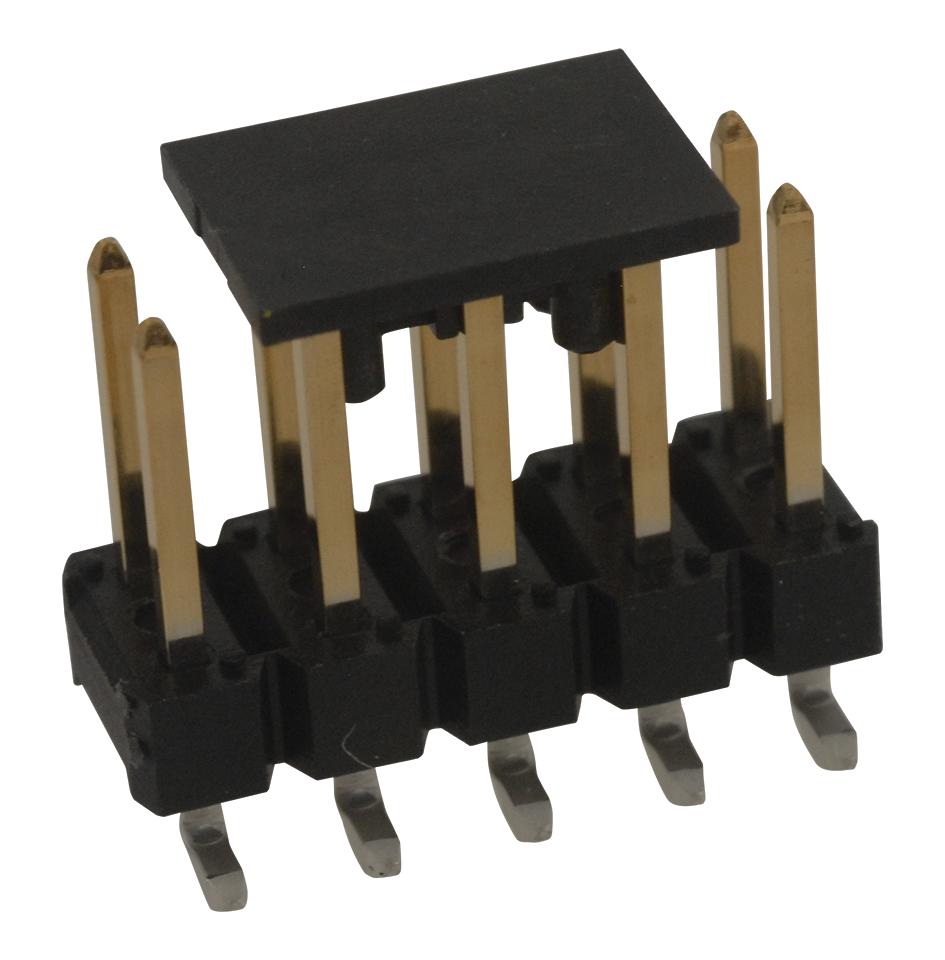

AMPHENOL COMMUNICATIONS SOLUTIONS 95278101A10LF Unshrouded Headers
The BergStik 2.54mm unshrouded headers are versatile connectors suitable for board-to-board, wire-to-board, and cable-to-board applications. Designed with high temperature thermoplastic housing rated UL94V-0, these headers feature phosphor-bronze pins with gold or tin over nickel plating, ensuring excellent electrical performance and durability. Capable of handling 3A per contact with an insulation resistance of 5000MQ minimum and dielectric withstand of 1500V, they are compatible with various soldering processes including wave, vapor-phase, and IR reflow. Suitable for industrial and automotive markets, they support up to 100 mating cycles and operate within -65°C to +125°C temperatures.
AMPHENOL COMMUNICATIONS SOLUTIONS 95278101A10LF Unshrouded Headers Specifications:
- Housing: High temperature thermoplastic, Black
- Flammability Rating: UL94V-0
- Pin: Phosphor-bronze
- Plating: Gold or Tin over 1.27μm Nickel
- Current Rating: 3A per contact
- Insulation Resistance: 5000MQ min
- Dielectric Withstanding Voltage: 1500V
- Operating Temperature: -65°C to +125°C
- Retention Force: 9N min
- Compatible with wave, vapor-phase, and IR reflow soldering
- Supports up to 100 mating cycles
- Available in single and double row configurations
- Available in straight or right angle options
- Packaging: Bags, tape-and-reel, or tubes
- RoHS compliant
- Color: Black
Buy the FCI Series BergStik 2.54MM: Unshrouded Headers 95278101A10LF
Purchase FCI BergStik 2.54MM unshrouded headers online today for versatile interconnect solutions suitable for board-to-board, wire-to-board, and cable-to-board connections. Designed with high-temp thermoplastic housing and plated phosphor-bronze pins, these connectors support up to 100 mating cycles, ensuring long-lasting durability and excellent electrical performance. Compatible with wave, vapor-phase, and IR reflow soldering, they are ideal for industrial, automotive, and electronic equipment applications. Available in straight or right-angle configurations, they meet RoHS standards and come in various packaging options for convenience and safety.
Get FCI BergStik 2.54MM 95278101A10LF today—built for reliable connections in industrial and automotive applications with high durability.
