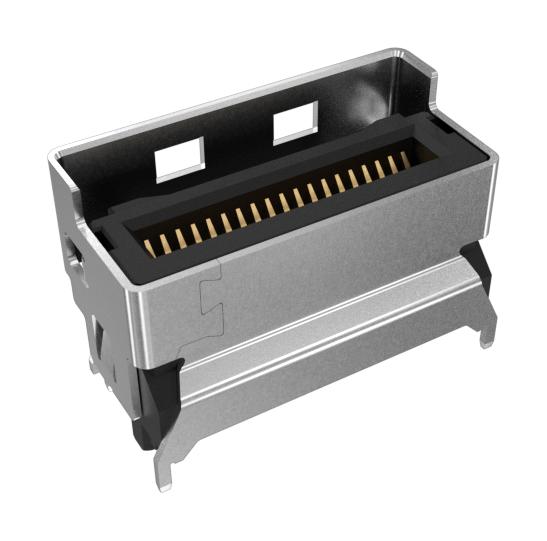

AMPHENOL COMMUNICATIONS SOLUTIONS G97V24312HR Mini Cool Edge Connector
The G97V24312HR is a 0.60mm pitch mini Cool Edge I/O connector featuring a slim profile design. It supports high-speed signal transmission up to PCIe® Gen 5 and allows for increased signal path lengths while maintaining signal integrity compared to traditional PCB routing. This connector accommodates both cable and card edge applications in a vertical configuration, with a high-temperature thermoplastic housing. It is constructed from copper alloy with gold-plated contacts, ensuring reliable electrical connections.
AMPHENOL COMMUNICATIONS SOLUTIONS G97V24312HR Mini Cool Edge Connector Specifications:
- Pitch: 0.60mm
- Configuration: Vertical and right angle
- Supports: PCIe Gen 4 and Gen 5, up to 56Gb/s PAM4, over 1.0 meter transmission distance
- Material: Copper alloy contact base, high-temperature thermoplastic housing, stainless steel cage
- Contact Finish: Gold over nickel, Tin over nickel on solder area
- Electrical: Contact Resistance Max. 30mΩ, Dielectric Withstanding Voltage 300V DC
- Mechanical: Durability 250 mating cycles, Mating Force 0.6N/pin max, Unmating Force 0.06N/pin min
- Environmental: Humidity cycles, temperature life up to 105°C for 168 hours, thermal shock from -55°C to 85°C
Buy the Buy Amphenol Mini Cool Edge 10 Part Number G97V24312HR Online
Enhance your high-speed system design with the Mini Cool Edge connector from Amphenol. This 0.60mm pitch connector supports PCIe® Gen 5, PCIe® Gen 4, and up to 56Gb/s PAM4 signals over single meters of transmission distance. Its slim, modular design suits compact data centers and scalable applications. Constructed with durable copper alloy contacts and a high-temperature thermoplastic housing, it ensures long-lasting performance and reliable electrical connections. Perfect for cable and card edge applications, this connector simplifies assembly and system integration.
Buy Amphenol G97V24312HR now and experience unmatched high-speed data transmission and reliable system connectivity.
