AMPHENOL COMMUNICATIONS SOLUTIONS L17DTZF09RGL717SDE09P D-Sub Connector Kit

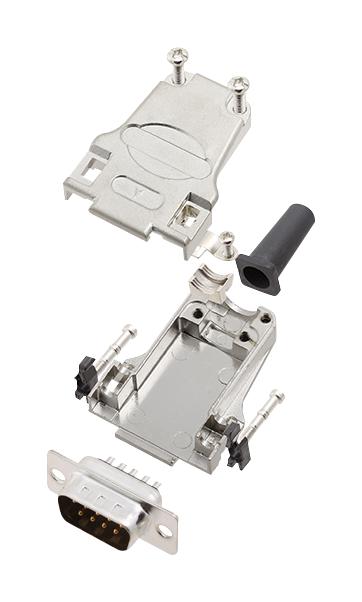

The D-Sub connector kit features zinc, nickel-plated shells with excellent EMI shielding and re-openable design, suited for high-reliability connections in industrial and electronic applications. It includes solder cup contacts in various sizes (9, 15, 25, 37 ways) with glass-filled insulators, copper alloy contact pins, and gold flash plating for durability. Operating temperature ranges from -45°C to +105°C, with a voltage withstand of over 1000V RMS, and current rating of 5A. Thumbscrews allow secure top entry cable attachments with standard UNC 4-40 threads, making it ideal for versatile, secure, and high-performance connections.
AMPHENOL COMMUNICATIONS SOLUTIONS L17DTZF09RGL717SDE09P D-Sub Connector Kit Specifications:
- Material: Zinc shell, Nickel Plated
- Operating Temperature: -45°C to +105°C
- Cable Entry: Top Entry, UNC 4-40 threaads
- Cable O.D - Standard: 9-Way up to 6.5mm with grommet, 15-Way up to 6.5mm with grommet, 25-Way up to 8.0mm with grommet, 37-Way up to 9.0mm with grommet
- Insulator: Glass filled TP, UL94 V-0
- Contact pins: Copper Alloy, Gold Flash over Ni.
- Voltage Withstanding: >1000V RMS to 50Hz for 1 minute
- Current Rating: 5A
- Insulator Resistance: >5000MQ min.
- Contact Plating: Gold Flash over Nickel
- Features: Re-openable, EMI shielding, Spring-clip mounted jack screws
- Connector Sizes: 9, 15, 25, 37 ways with dimensions for each size listed
Buy the Amphenol Series D-Sub Connectors: L17DTZF09RGL717SDE09P
Enhance your electronic and industrial applications with this high-quality D-Sub connector kit featuring zinc, nickel-plated shells, solder cup contacts, and excellent EMI shielding. Designed for durability and versatile installations, it supports cables up to 9.0mm with grommet or without, offers operating temperature resistance from -45°C to +105°C, and withstands over 1000V. Ideal for demanding environments, these connectors provide reliable, re-openable connections with secure mounting via threaded thumbscrews, making them perfect for professional electrical and data transfer projects.
Order your Amphenol Series D-Sub connector kit today and give your electronic projects the dependable, high-quality connection they deserve, ensuring secure and reliable data transfer with excellent EMI shielding.
