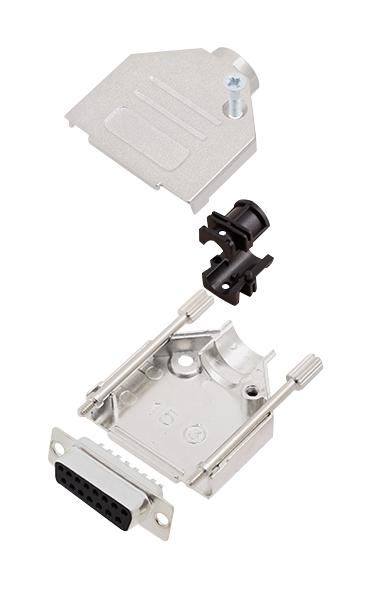

Amphenol-Communications-Solutions L17DTZK15L77SDA15S D-Sub Solder Cup Connector
This D-Sub solder cup connector features a zinc nickel-plated hood with a top cable entry for easy installation, operating from -40°C to +120°C. The shell is steel, tin-plated, while contact pins are made from copper alloy with gold flash over nickel for reliable conductivity. It supports cable O.D up to 11.5mm, features 360° EMI shielding, and is re-openable for maintenance. Suitable for various sizes including 9, 15, 25, and 37, this connector ensures high insulation resistance and withstands voltages over 1000V RMS to 50Hz, making it ideal for demanding industrial applications.
Amphenol-Communications-Solutions L17DTZK15L77SDA15S D-Sub Solder Cup Connector Specifications:
- Material: Zinc, Nickel Plated
- Operating Temperature: -40°C to +120°C
- Cable Entry: Top Entry
- Cable O.D: Up to 11.5mm
- Insulator: Glass filled TP, UL94 V-0
- Shell: Steel, Tin Plated
- Contact pins: Copper Alloy with Gold Flash over Ni
- Voltage Rating: >1000V RMS to 50 Hz
- Current Rating: 5A
- Insulation Resistance: >5000MQ min.
- Features: EMI shielding, re-openable design, various sizes available
Buy the Buy Amphenol D-Sub Solder Cup Part Number L17DTZK15L77SDA15S Online
Enhance your electronic assemblies with the Amphenol D-Sub solder cup connector SeriesL17DTZK15L77SDA15S. Designed for industrial use, this connector offers high durability, excellent EMI shielding, and gold-plated contacts for superior conductivity. Its top cable entry simplifies installation while supporting cables up to 11.5mm O.D. withstanding voltages over 1000V RMS. Ideal for automation, communication, and control systems, this re-openable, zinc nickel-plated connector ensures long-lasting, reliable electrical connections in demanding environments.
Order your Amphenol SeriesL17DTZK15L77SDA15S durable solder cup connector today and ensure reliable connections with high EMI shielding and robust construction.
